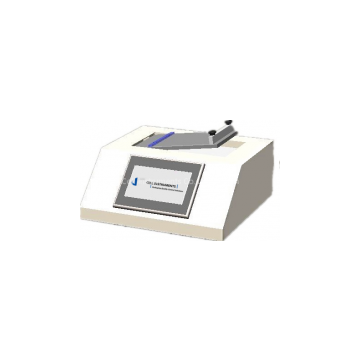

Inclined surface coefficient of friction tester

Product Details

Product Description

Product Description
COF-03 measures the static coefficient offriction of various materials using a variable inclined plane and a slidingblock.
The COF is measured on an inclined plane ofapproximately 0 to 85°. This incline is increased at a rate of 1.5±0.5° persecond by an electric motor until the sample bearing block begins to slide. Atthis point, the inclined plane is locked and the angle can be read. The tangentof this angle is the coefficient of friction (COF).
Features
PLC control and touch screen operation.
High precision angle control
Micro printer
Professional software (optional)
TechnicalData
Angle range 0～85°
Accuracy 0.01°
Test speed 0.1°/s～10.0°/s
Sled size 90mm×100 mm 1300g (standard)
Standards: ASTM D 4918, ASTM D 202, and TAPPI T 815

---
