Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
Piller Type Vertical Drilling Machine
Max. Drilling Diameter
30mm
Spindle Speeds Range
65-2600rpm
Power of Main Motor
0.85/1.1kw
Dimension of Work Table Surface
500X440
Key Word
Vertical Drilling Machine
Function
Drilling Hole for Metal
Distance Spindle Axis to Column Generati
1100mm
Transport Package
Wooden Case
Specification
1080x620x2150mm
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
108.00cm * 62.00cm * 215.00cm
Package Gross Weight
495.000kg
Product Description

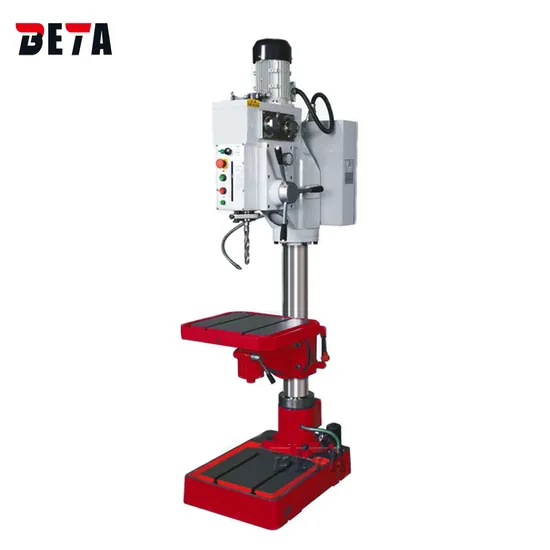

New China Factory Piller Type Vertical Drilling Machine Z5030
Standard accessories:
Drill chuck Arbor Taper sleeve Drift Eyelet bolts Wrench
| Model | Unit | Z5030 | Z5035 | Z5040 | Z5050 |
| Max. drilling capacity | mm | 30 | 35 | 40 | 50 |
| Max. tapping capacity | mm | M20 | M24 | M27 | M30 |
| Diameter of column | mm | 120 | 140 | 160 | 180 |
| Spindle travel | mm | 135 | 160 | 180 | 240 |
| Distance between spindle axis to column generating line | mm | 320 | 330 | 360 | 360 |
| Max. distance between spindle nose to table | mm | 550 | 590 | 590 | 570 |
| Max. distance between spindle nose to base | mm | 1100 | 1180 | 1180 | 1160 |
| Spindle taper | | MT3 | MT4 | MT4 | MT4 or MT5 |
| Spindle speed range | r/min | 65-2600 | 75-2500 | 42-2050 | 42-2050 |
| Spindle speed steps | | 12 | 12 | 12 | 12 |
| Spindle feeds | | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.07, 0.15, 0.26, 0.4 | 0.07, 0.15, 0.26, 0.4 |
| Worktable size | mm | 500x440 | 500x440 | 550x470 | 550x470 |
| Table travel | mm | 490 | 550 | 550 | 550 |
| Base size | mm | 400x390 | 400x390 | 450x440 | 450x440 |
| Overall height | mm | 2050 | 2300 | 2330 | 2380 |
| Main motor | kw | 0.85/1.1 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
| Coolant motor | W | 40 | 40 | 40 | 40 |
| N.W./G.W. | kg | 450/495 | 545/595 | 755/815 | 985/1045 |
| Packing size | mm | 1080x620x2150 | 1080x620x2200 | 1080x620x2450 | 1080x620x2450 |
Feature and Application: New-designed,pleasing appearance,compact construction, wide speed change range, easy to operate. Easy operation with its unique workable,and manual operated lifting device. The working table can be rotated 180°and can be tilted ± 45°also,it is reliable and easy job can be done. Equipped with coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electrical system with powerful spindle motor, it designed according to IEC standard. Characteristic protection device is safe and reliable Ideal choice for single piece, small batch and mass production for drilling ,counter boring, reaming, tapping, spot facing.etc.
>>
