Basic Info.
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Solar Collector
Three Target Vacuum Tubes
Inner Tank
SUS 304 0.31mm
Diameter of Inner Tank
360mm
Diameter of Outer Tank
460mm
Insulation
Polyurathane 50mm
Application
Outdoor, Hotel, Household, Bath/Wash/Swimming Pool
Installation
Freestanding
Frame
Aluminum Steel 1.0mm.
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
192.00cm * 75.00cm * 48.00cm
Package Gross Weight
65.000kg
Product Description
Product Description

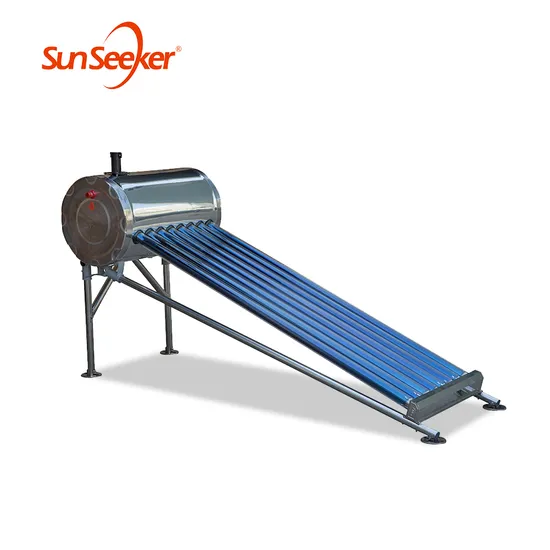

Product Introduction
| Material of inner tank | 0.31mm-0.5mm thickness,food grade SS304/customization |
| Material of outer tank | 0.31mm thickness SS201/customization |
| Insulating layer | 50mm thickness,45kg/m3 high density polyurethane foamed |
| Inlet and outlet hole | Male G 1/2,3/4... |
| Solar collector tube | 3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating |
| Thickness of glass tube | 1.6mm/1.8mm/2.0mm/2.2mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Bracket(frame) | 1.2mm/1.5mm galvanized steel |
| Frame angle | 9°/17°/20°/27°/45°/customization |
| Welding | Argon arc welding |
| Fastening pieces | Made of stainless steel screw |
| Tank capacity | From 80-400L |
| If you have customization needs, please contact us | |
| Item no | Diameter of outer tank | Diameter of inner tank | QTY of tube | Diameter of tube | Length of tube | Effective light area | Tanks capacity | Application people | CBM |
| ZY-1NA-5808 | 460mm | 360mm | 8 | 58mm | 1800mm | 0.83 | 80L | 2 | 0.3 |
| ZY-1NA-5808 | 460mm | 360mm | 8 | 58mm | 1800mm | 0.83 | 80L | 2-3 | 0.3 |
| ZY-1NA-5810 | 460mm | 360mm | 10 | 58mm | 1800mm | 1.04 | 100L | 3 | 0.37 |
| ZY-1NA-5812 | 460mm | 360mm | 12 | 58mm | 1800mm | 1.25 | 120L | 3-4 | 0.44 |
| ZY-1NA-5815 | 460mm | 360mm | 15 | 58mm | 1800mm | 1.46 | 150L | 4 | 0.56 |
| ZY-1NA-5818 | 460mm | 360mm | 18 | 58mm | 1800mm | 1.87 | 180L | 4-5 | 0.64 |
| ZY-1NA-5820 | 460mm | 360mm | 20 | 58mm | 1800mm | 2.08 | 200L | 5-6 | 0.7 |
| ZY-1NA-5824 | 460mm | 360mm | 24 | 58mm | 1800mm | 2.5 | 240L | 6 | 0.9 |
| ZY-1NA-5830 | 460mm | 360mm | 30 | 58mm | 1800mm | 3.13 | 300L | 7 | 1 |
| ZY-1NA-5836 | 460mm | 360mm | 36 | 58mm | 1800mm | 3.75 | 360L | 7-8 | 1.3 |
| ZY-1NA-5840 | 460mm | 360mm | 40 | 58mm | 1800mm | 4.17 | 400L | 8 | 1.4 |
| ZY-1NA-5850 | 460mm | 360mm | 50 | 58mm | 1800mm | 4.69 | 500L | 8-9 | 1.6 |
Our services
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample 2.Shipping: 7 days for sample, 7-10 days for 20/40 container 3.MOQ: Sample is available 4.Warranty: 5 years guarantee for whole set solar water heater 5.Port of departure:Shanghai or Ningbo 6.Supply ability: 6000 sets per month 7.life time : more than 20 years FAQ Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar water heater.
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What's the MOQ?
A: For trail sample order, 1pcs is available.
Q: What's your delivery time?
A: 7-10 working days after receipt of signed PI and down payment
Q: What is your package ways?
A: Generally, standard products with standard package. Inside: plastic foam. Outside: cartons
Q: Do you have other ADDITIONAL SERVICE?
A: YES We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal )
used on solar water heater system and the price will be much competitive.
>>
