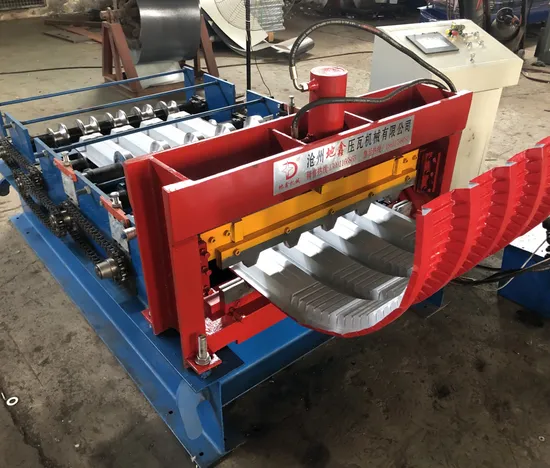

Fully Automatic Roof Panel Curving Roll Forming Machine

Product Description

Fully Automatic Roof Panel Curving Roll Forming Machine
1. Components:
1. Decoiler
2. Coil sheet guiding and adjusting equipment
3. Film covered device(optional)
4. Main roll forming system
5. Hydraulic pump station
6. PLC control system
7. Cutting device
8. Run-out table

2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel
3. Technical Parameters:

No.	Main parameter
1	Suitable to process	Galvanized/Aluminum/Color steel sheet
2	Width of plate	1250mm
3	Thickness of plate	0.3-0.8mm
4	Rollers	High grade 45# steel, with hard chrome plating
5	Forming steps	16
6	Sprocket chain	1.5 inch
7	Pump station power	4kw
8	Shaft	75mm, high grade 45# steel, heat treatment
9	Hydraulic oil pump	CB-E310
10	Weight	About 5.0 tons
11	Productivity	8-12m/min
12	Cutting head	Cr12 mould steel with quenched treatment
13	Control system	TAIDA brand PLC control
14	Voltage	380V 3Phase 60Hz
15	Motor power	4kw
16	Dimension	About 6.8m*1.5m*1.5m
17	Hydraulic pressure	10-12mpa
18	Index error of length	±1mm
19	The temperature range of working line	-35-50°

Above all the parameters can be changed exactly according to customer's requirements.
4. Advantage of DIXIN roll forming machine

No.	DIXIN roll forming machine
1	High grade quality
2	Reasonable price
3	High efficiency
4	Low failure rate
5	Low energy consumption
6	Free after-sale service
7	Reliable working
8	Durable
9	Wide application
10	Beautiful appearance
11	Welcomed by all over the world customers
12	Professional foreign trade team
13	Mature technician team
14	Customize special type

5. Want a free quotation for make budget?
Just send inquiry to me now!
6. We are your reliable partner!
We always do the best to make our machine perfect in every detail part.
Any pics or videos about machine, we can provide you.
7. Payment terms
30% T/T as the deposit when contract signed, 70% balanced before shipping.

---
