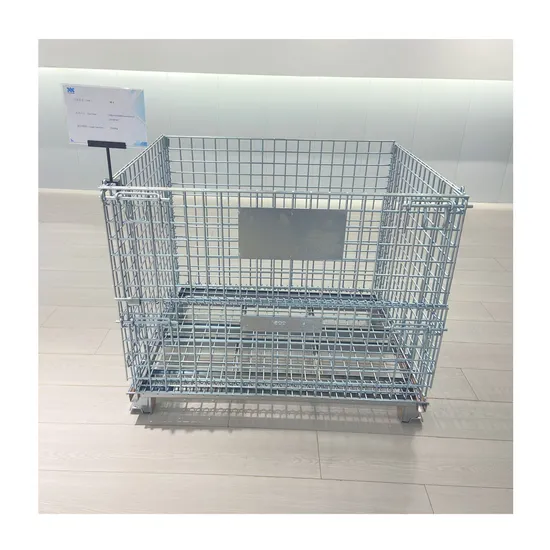

Industrial Wire Mesh Metal Grid Galvanized Stackable Pallet Storage Cage Container

Product Description

Wire container is also called as wire cage or wire basket, which is durable and stronger, at the same time, it is easy
to folding down and stacking high.Because wire container has special strong feet and heavy-duty understructure which
help to stake 4 high when loaded heavy weight. Good visibility and same loading space by using wire container make
the warehouse management unitized and standard. When unused, the wire container can be folded down to save space.
It is easy for forklift accesses from four side. Options accessories include dividers, shelves, card holders, name plates,
casters, locking security lid, fork pockets ,bar runners for storage on rack beams.

Same design, different sizes
Model No.	Outer Dimension	Inner Dimension	Loading Capacity	Net Weight	Gate Style
	LxWxH(mm)	LxWxH(mm)	Kg	Kg
YFZ-J1	851X512X526	772X467X400	500	24	full drop gate
YFZ-K1	831X505X538	748X470X400	500	27	full drop gate
YFZ-J3	831X514X538	759X471X400	800	29	full drop gate
YFZ-L1	1030X814X838	947X775X698	1000	44	1/2 drop gate
YFZ-W1	1030X814X838	947X775X698	1500	50	1/2 drop gate
YFZ-L2	1230X1014X889	1148X965X750	1000	58	1/2 drop gate
YFZ-W2	1230X1014X889	1148X969X748	2000	70	1/2 drop gate
YFZ-C1	1230X1014X1040	1140X950X900	1000	64	1/2 drop gate
Material	Mild steel Q235
Application area	Warehouse, logistic, recycling industry
Finish	Zinc/hot DIP galvanized/powder coating
Remark	Costomized or OEM support
Main features	1. Collapsible-save space when not in use, ideal for return journeys 2. Standard half-hinged gate access 3. Long lasting, economical alternative to disposable packing 4. Open wire mesh design allows for full visibility for inventory checks, Ventilation and cleaness.

Features
I. Sliding locking handles hold drop side securely. 2. The "U" formed base channels welded by welding robots, ensuring welding quality and strong capacity.
3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.
4. Double welded wire construction to reinforce side panel for stack safety. 5. Arched steel legs design increase strength and aid stack high and steady. 6. "U" formed construction is welded underneath the side panel to avoid sliding.
7. Fasteners are used to joint side panels together, ensuring durability.
8. "U" formed loops work with handles to fix up the side panel and drop gates. 9. Holes punched on the U formed base channels for fixing the casters. 10. Steel name plate.

---
