FINCM Boiler Tube Sheet Fabrication CNC Hydraulic High-Speed Drilling Machine

Product Description

Product Description

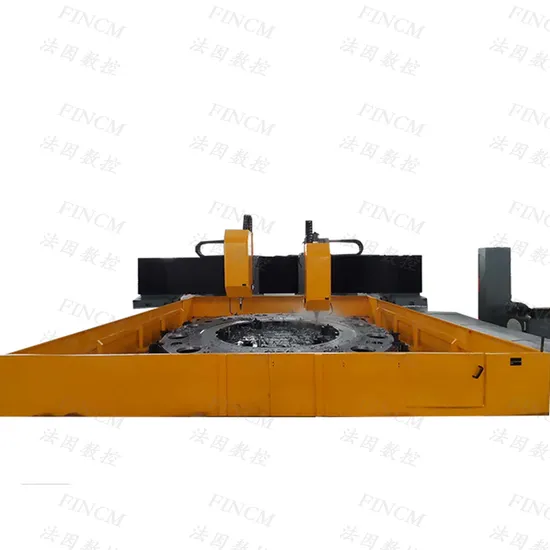

Heavy Industry Boiler Tube Sheet Fabrication CNC Hydraulic High-Speed Drilling Machine 6000mm*6000mm * 250mm
PHM6060A/2 top manufacturer CNC drilling machine for steel plates . Machine Purpose:
Mainly Drilling tube sheet plates and flanges, the drilling hole diameter is less thanφ80mm. The main function includes drilling holes, reaming, boring, tapping, chamfering, and milling. It's applicable to take both carbide drill bit and H.S.S. drill bit. The CNC control system's operation is convenient and easy. The machine has very high work accuracy.
Main technical specifications:

Item	Name	Value
Maximum Plate Size	L x W	6000×6000 mm
	Maximum Thickness	250mm(can be extended to 380mm)
Work Table	T Slot Width	28 mm(standard)
	T Slot Direction	Y Axis
	Loading Weight	3 tons/square meter
Drilling Spindle	Maximum Drilling Diameter	φ80 mm
	Drilling spindle's Rod Length vs. Hole diameter	≤10,(Crown Diamond)
	Maximum Tapping screw	M30
	RPM	30~3000 r/min
	Spindle Tape	BT50
	Spindle motor power	2×37kW
	Maximum Torque n≤750r/min	470Nm
	Distance from Spindle bottom surface to the worktable	900-1400 mm (adjustable as per material thickness)
Gantry Longitudinal Movement (X Axis)	Max. Travel	6000 mm
	Movement speed along X axis	0~10m/min
	Servo motor power of X axis	2×2.6kW
Spindle Transversal Movement (Y Axis)	Max. Travel	6000mm
	Movement speed along Y axis	0~10m/min
	Servo motor power of Y axis	2×2.1kW
Spindle Feeding Movement (Z Axis)	Maximum distance between two drilling headstocks	500 mm
	Feeding speed of Z axis	0~10m/min
	Servo motor power of Z axis	2×4.3kW
Positioning accuracy	X axis,Y axis	0.05mm/full travel
Repeatable positioning accuracy	X axis,Y axis	0.03mm/full travel
Hydraulic system	Hydraulic pressure/Flow rate	15MPa /22L/min
	Hydraulic pump motor power	5.5 kW
Pneumatic system	Compressed air pressure	0.5 MPa
Scrap removal and Cooling system	Scrap removal tpe	Plate chain
	Scrap removal Nos.	2
	Scrap removal speed	1m/min
	Motor Power	2×0.75kW
	Cooling way	Inner cooling + Outside cooling
	Max. Pressure	2MPa
	Max. Flow rate	2×60L/min
Electronic system	CNC control system	Siemens 828D
	CNC Axis Nos.	6
	Total power	About 110kW
Overall Dimension	L×W×H	About 10.8×9.7×4.1m
Machine weight		About 60t

Machine Features: The bed is distributed on the left and right sides of the worktable. The longitudinal (X-axis) movement of the gantry leans against the imported high-load-bearing linear roller guide pair arranged horizontally on the bed. The middle of the two guides is driven by a servo motor through a precision planetary reducer and The large pitch ball screw pair is driven synchronously on both sides.
The workbench adopts a fixed form, selects high-quality cast iron, and uses advanced technology to cast and shape, with large bearing capacity. There are several T-slots on the worktable with a width of 28mm, which can be used to install special fixtures or directly clamp workpieces. There are a number of M24 anchor bolts and adjusting horns distributed on the bed foot, and a high-load-bearing ground anchor is used on the table foot, which can easily adjust the level of the bed and the table.
The drilling power box of this machine tool is a rigid precision spindle type, adopts Taiwan BT50 internal cooling spindle, the spindle taper has a purging device, and can use cemented carbide internal cooling drills with high precision.Equipped with Taiwanese hydraulic cutter cylinder, using a hydraulic disc spring to automatically loosen and broach the knife, equipped with a tool tension state monitoring device, and an effective safety interlock protection device. It is extremely convenient to load and unload knives.

Key outsourced components list:

No.	Name	Brand	Country
1	Roller linear guide rail	HIWIN/PMI	China Taiwan
2	CNC control system	Siemens	Germany
3	Feeding servo motor and servo driver	Siemens	Germany
4	Precise spindle	Spintech/Kenturn	China Taiwan
5	Hydraulic valve	Yuken/Justmark	Japan/China Taiwan
6	Oil pump	Justmark	China Taiwan
7	Automatic lubricating system	Herg	Japan
8	Button, Indicator, low voltage electronic components	ABB	Germany

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the abovesupplier can't supply the components due to any special matter.
Free Accessories list:

No.	Name	Size	Qty.
1	Optical edge finder		1 piece
2	Inner hexagon wrench		1 set
3	Tool holder and pull stud	Φ40-BT50	2 pcs
4	Tool holder and pull stud	Φ20-BT50	1 piece
5	Spare paints	--	2 kegs

Work Environment:
1).Power supply: 3 phase 5 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75%
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.

Cooprative Supplier
Product Process Control
Customer Feedback
Sales Network
Our Service
FAQ

1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
