US$550.00-1,100.00
|
1 set
(MOQ)
|
Basic Info.
Measuring Range (Um)
Ra: 0.005-16.000; Rz: 0.02-160.00
Indication Accuracy
0.001
Indication Error
±(7-10)%
Power
Rechargeable Li-Battery
Transport Package
Carton Box
Specification
158mmx63.5mmx46mm
Production Capacity
300 Sets Per Month
Product Description

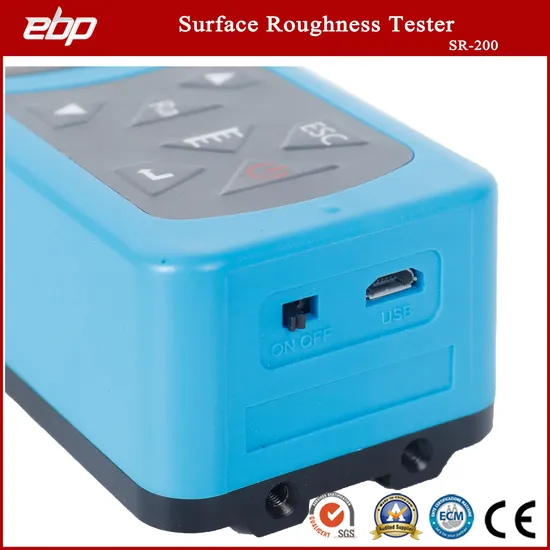

0.001 Accuracy Portable Digital Surface Roughness Tester with Different Units
Main feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by "TRANSFORMERS" stylish design, portable, high reliability.
*High price performance
*Bluetooth function
*Can acquire, manage data by APP
Technical Specification:
| Model | SR-200 |
| Testing parameters | Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; |
| Measuring range (um) | Ra: 0.005-16.000 Rz: 0.02-160.00 |
| Sample length (mm) | 0.25, 0.80, 2.50 |
| Evaluation length(mm) | (1-5)L |
| Maximum drive stroke | 17.5mm/0.7inch |
| Indication accuracy | 0.001 |
| Indication error | ±(7-10)% |
| Variability | <6% |
| Data Storage | 100 groups |
| Power | Rechargeable li-battery |
| Working temperature | -20ºC~40ºC |
| Relative humidity | <90% |
| Size | 158mmx63.5mmx46mm |
| Weight of Host | 0.3kg |
>>
