Hanbs High Precision Horizontal CNC Lathe with Automatic

Product Description

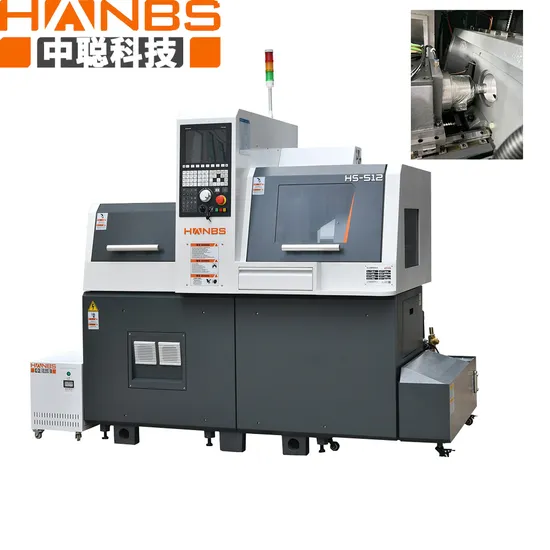

HS-512 solid and reliable CNC lathe with advanced
Product description:
Efficiency: With its automated and computerized process, CNC machining is much faster than traditional methods. Additionally, the machines can run continuously, reducing production time and increasing output.
Precision: With CNC machining, the possibility of human error is minimized, resulting in highly precise and accurate products. This level of precision is especially crucial in industries such as aerospace and medical, where even the slightest error can have severe consequences.
Versatility: CNC machines can produce a wide range of products by simply changing the program and tooling. This makes them suitable for mass production of standardized products as well as the production of customized and one-of-a-kind items.
Cost-effective: While CNC machines may have a high initial investment, they can ultimately save on labor costs and reduce waste. The precision of CNC machining also means less material is wasted during the production process.
Product Photoes
Product Information

Maximum processing diameter	Φ12mm
Maximum processing length(2.5d in the mode without guide bush	60mm
Axial maximum drilling diameter	Φ5mm
Axial maximum tapping size	M5
Maximum spindle speed(for short-term use only)	10000rpm
Radial maximum drilling diameter	Φ5mm
Radial maximum tapping	M4
The maximum clamping diameter of the back spindle	Φ12mm
The maximum workpiece extension of the back spindle	30mm
The maximum drilling diameter of the back spindle	Φ5mm
The maximum tapping diameter of the back spindle	M5
The maximum speed of the back spindle(only for short-term only)	12000rpm
The maximum take-out length of the workpiece	40mm
Side powered tool unit	3
Knife row(12*120*5+6*120*1)	5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back)	13
The maximum number of tools installed as standard	21
Z1,Z2,X2,Y Axis fast forward speed	24m/min
X1 Axis fast forward speed	18m/min
Spindle center height	1000mm
Input power	7KW
Weight	1500kg
Dimensions(WXDXH)	1950*1100*1700mm

Processed Product Display
process material
Factory
Certifications
patent
loading & shipping
Q&A
1.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.

2. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
3.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
4. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
5.Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
6. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
7. What kind of CNC system do you use?
A: Our CNC operating system is our self-developed servo spindle, our own brand, which has been very popular in the market because of its easy operation and comprehensive functions.
8.Are you a factory? How can I visit?
A: Yes. Our company is located in NO.,13 Wenti Road, Shuikou Village, Dalang Town, Dongguan City, Guangdong Province
9. What are the application fields or uses of the product?
A: Widely used in communication equipment, connectors, cell phones, home applications, aerospace, medical equipment, automobiles, miniature shafts, optical instruments, clocks and watches, and a variety of hardware accessories.

---
