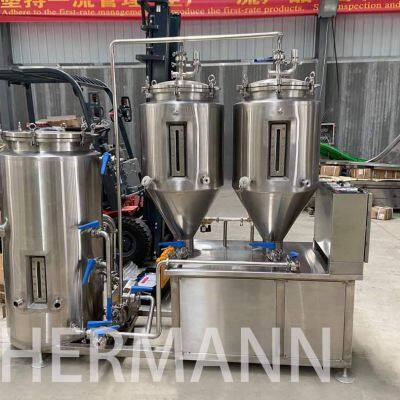

50L beer brewing system

Product Details

Product Description

Product Description
Mash/lauter boiling whirlpool combined tank
-Working volume:50L;Total volume:90L -Size:φ600*500mm
-Design temperature:Min:0℃ Max:100℃ -Design pressure:Atmosphere
-Inner tank thickness:2.5mm;Outer tank thickness:2mm
-Surface process of the tank:Brushed surface -Insulation thickness:50mm
-Electric element heating
-With filter drum inside,sizeφ340*500mm -PT-100 temperature probe
-Other matched valves
Accessories
-Plate heat exchanger
Size:1 m;Single stage
-Centrifugal type wort pump
Power:0.15KWLift:0.2m/h
With frequency conversion
The material connected with wort is sanitary stainless steel 304
With waterproof shield
-Brewhouse Pipes
Size:32/25
-With sight glass
Fermentation tank*2
-Working volume:50L;Total volume:70L -Size:φ570*1280
-Design temperature:Min:0℃ Max:100℃
-Design pressure:2Bar -Working pressure:1Bar -Inner tank thickness:2.5mm;
-Outer tank thickness:2mm
-Surface process of the tank: Brushed surface
-Head type:Dished head -Bottom type:Conical bottom,60°degree.
-Insulation material and thickness:PU insulation,50mm -With Cooling coil around the tank
-CIP pipeline and CIP rotary spray ball -Top manhole
-Matched with Breath valve: Adjust the negative and positive pressure.
-Matched with Sample valve
-Matched with Pressure gauge
-Drain outlet on the bottom
Glycol water box with refrigerator
Coontrol box

---
