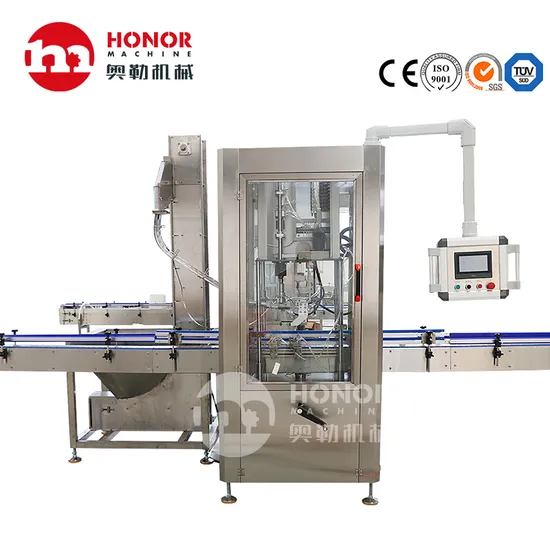

2020 The Latest Automatic Filling and Sealing Equipment of High Quality Gel Hand Sanitizer Detergent with Duck Bill Type

Product Description

2020 the latest automatic filling and sealing equipment of high quality gel hand sanitizer detergent with duck bill type
This machine is suitable for all kinds of viscous, non-viscous and corrosive liquids etc. It is widely used in plant oils,
engine oils, chemical liquids, daily chemical liquids etc. This equipment is mechatronics. It is very convenient to
replace bottle samples or liquids. unique design and superior performance. It meets all requirements of customers.
Siemens PLC control system, with control protection function, vacuum leak-proof device, to ensure no leaking situation
during production, electric adjusting for volume system, frequency conversion control and photoelectric control with
German TURCK brand.
Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle
Filling parts
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Vacuum filling method
5. No dropping
Capping part
1.PCO ,plastic cap, metal cap, aluminum cap
2.no bottle no capping
3.two sensor to check, PLC control
4.no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
Lamp checker
Clearly to see the filled bottle
Vacuum tank and pump
Because the liquid contains the foam , so not only the valve has the degas feature, we also need the fit the vacuum pump and tank, to suck all the foam from the liquid , and send to the vacuum tank through the vacuum pump
Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Customized
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack

Filling heads	4	6	8	10	12	16
Capacity(1L/bottle/h)	600-1200	1000-1600	1600-2200	2200-2800	2800-3200	3200-4000
Filling volume(ml)	200-1000/ 500-3000/1000-5000
Filling tolerance	±0.5%
Gas pressure(Mpa)	0.55-0.8Mpa
Gas consumption(Mpa)	0.8	1	1.2	1.4	1.6	1.8
Motor power(kw)	1	1.2	1.4	1.6	1.6	1.8

---
