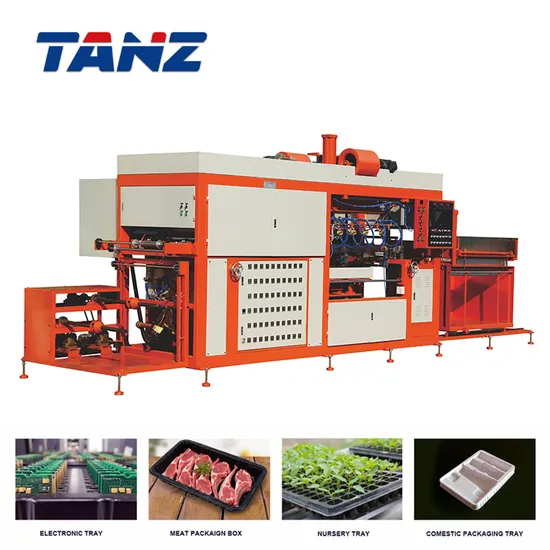

High Speed Plastic Fast Food Container Tray Thermoforming Making Machine

Product Description

High Speed Plastic Fast Food Container Thermoforming Machine Take Away Box Tray Making Machine
Features
1,The upper and lower molds are driven by servo motors at constant speed to ensure high precision of product stretching

2,Adopting servo drive and full computer PLC control, it has storage memory and correction functions (accuracy ± 1mm), as well as film exit function to avoid film waste. The feeding adopts automatic design;

3,To match the molding of different materials, the vacuum displacement adopts a dual body and valve complementary design, ensuring stretchability and rapid molding of difficult products;

4,To ensure the forming stability of products with different rules, demolding is equipped with upper mold, top mold repetition, or multiple frequency modes to choose from;

5,The electric furnace adopts a closed horizontal reciprocating design, and the temperature control adopts constant pressure independent control. The heating is stable and the replenishment is uniform, which can effectively solve the problem of PET materials whitening, deformation and other adverse waste phenomena, saving more than 40% of electricity;

6,The cooling device and rapid cold water spray are increased, and the auxiliary demoulding spray function is set to accelerate the production speed, and the efficiency is more than 40% faster than the traditional machine;
Scope of application:
1,Suitable for molding thermoplastic materials such as PS HIPS, PVC, PET, PP, PE, PS, KPS, GPET, ABS with a thickness of 0.15-3.0mm, processing high transparency, high stretch, round, square, irregular, up and down bidirectional Stretch, flange products.

2,It is widely used in the sealing packaging of toys, hardware, cosmetics, electronic products (such as batteries, electronic components, etc.), food (such as fruit trays, snack boxes, biscuit boxes, food trays, trays, etc.), medicines, etc.
It is widely used in the sealing and packaging of toys, hardware, cosmetics, electronic products (such as batteries, electronic components, etc.), food (such as fruit trays, snack boxes, biscuit boxes, food trays, trays, etc.), medicines, etc.
Technical Parameter

Name	Place of origin, brand	Specifications, remarks
Vacuum pump	Weili Rietschle	100m3/HR 4HP
Spray gun	"Taizhang" customization	A100-P10
Temperature control	Aoyi	Aoyi
Cylinder	"Yade Rong" TaiZhang Customization	8kg/cm2
Solenoid valve	CKD	FS3 Series/FS2 Series
Heating brick	Ceramicx/Elstein	125x125mm 220V/650W
Chiller	Taizhang Custom	3HP
Intermediate relay	Omron	MK3P-1
Water, oil isolation	CKD	Triple
Control panel	"Hequan idec"/"Schneider"	ASS Series
Control switch	"Fuji""Fuji"	EA Series
Touchscreen	Willen	10 inches
Servo system	"Safide" customization	3.8KW

Main products:
Plastic Extrusion Line/PLA/PET/PP/PE/PS/ABS/APET, PETG, CPET sheet production line, PC, PMMA
optical sheet production line, ABS, HIPS single-layer, multi-layer sheet production line, plastic
absorbing machine, plastic machinery, etc.

Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
