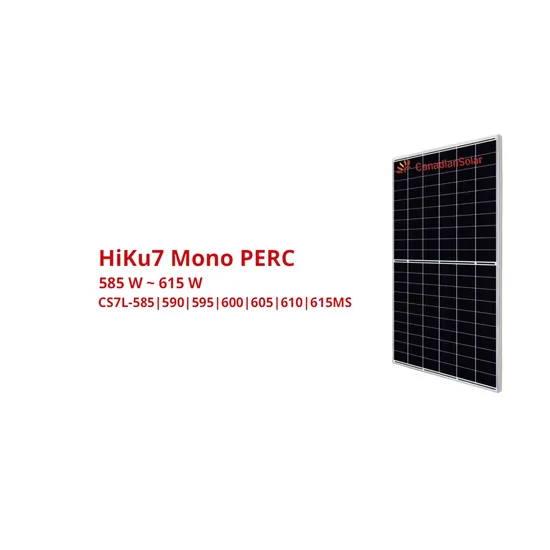

610W 615W HiKu7 Mono Module Canadian Monocrystalline Solar-Panels
| Brand | Canadian |
| Solar Cells | Monocrystalline |
| No. of cells | 120 cells |
| Module Dimensions | 2172×1303×35 mm (93.86×44.65×1.18 inches) |
| Weight | 26.3kg (63.49 lb) |
| Glass | 3.2 mm (0.13 inches), High Transmission, Tempered Glass |
| Encapsulant material | EVA |
| Backsheet | White |
| Packing | 558pcs/40 HC |
| Frame | 30mm(1.18 inches) Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 350/280 mm(13.78/11.02 inches)
Length can be customized |
| Connector | MC4 EVO2 / TS4 Plus/ TS4* |
| Peak Power Watts-PMAX | 615W |
| Power Tolerance-PMAX(W) | 0 ~ +5 |
| Maximum Power Voltage-V | 35.4v |
| Maximum Power Current | 17.38A |
| Open Circuit Voltage | 41.9V |
| Short Circuit Current | 18.62A |
| Module E ciency | 21.7% |
| Maximum Power | 461W |
| Maximum Power Voltage | 33.2V |
| Maximum Power Current | 13.9A |
| Open Circuit Voltage | 39.6V |
| Short Circuit Current | 15.01A |
| NOCT(Nominal Operating Cell Temperature) | 43°C (±2°C) |
| Temperature Coe cient of P MAX | - 0.34%/°C |
| Temperature Coe cient of VOC | - 0.25%/°C |
| Temperature Coe cient of ISC | 0.04%/°C |
| Operational Temperature | -40~+85ºC |
| Maximum System Voltage | 1500V DC (IEC) |
| Max Series Fuse Rating | 20A |
