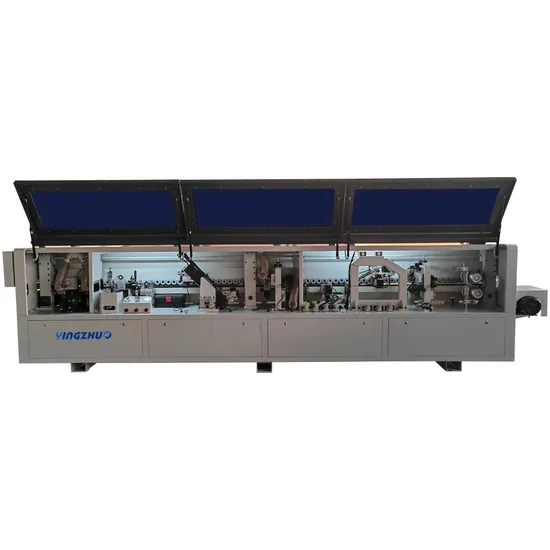

Enchapadora De Cantos De Melamina Automatic Feed PVC Edge Thickness 0.4mm-3mm Thickness Woodworking Edgebander Machine

US$7,320.00-7,520.00 1 Set (MOQ)

Basic Info.

Model NO.
YZ-SF
Type
Straight Line
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
16m/min
Certification
CE, ISO
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Underneath
Customized
Customized
After-sales Service
Online
Conveying Motor Power
1.5kw
Pre-Milling Motor Power
1.8kw*2
End Trim Motor Power
0.55kw*2
Fine Trim Motor Power
0.75kw*2
Corner Trimming Motro Power
0.37kw*2
Buffing Motor Power
0.18kw*2
PLC System
Delta Brand-Taiwan
Guide Rail
Hiwin-Taiwan
Total Machine Power
17.5kw
Weight
1400kg
Air Pressure
0.6MPa-0.8MPa
Voltage
220V/380V/415V
Transport Package
Stretch Film or Wooden Packaging
Specification
5300mm*750mm*1250mm
Trademark
Yingzhuo
Origin
China
HS Code
846599
Production Capacity
2000pieces/Year

Packaging & Delivery

Package Size
530.00cm * 75.00cm * 125.00cm
Package Gross Weight
1400.000kg

Product Description

YINGZHUO is a professional machinery and equipment technical enterprise combines the scientific research,explore,manufacture,sales and service together.
The company's motto is ''Customer first. Good will is the best policy'' Accordingly. it pures high quality goods and customer service and has won the titles ''High Standard'',''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers.
Model YZ-S1 YZ-S2 YZ-S3 YZ-S4 YZ-SF
Feeding speed 18-23m/min 18-23m/min 18-23m/min 18-23m/min 18-23m/min
Panel length ≥80mm ≥80mm ≥80mm ≥80mm ≥80mm
Panel width ≥50mm ≥50mm ≥50mm ≥50mm ≥50mm
Band width 12-60mm 12-60mm 12-60mm 12-60mm 12-60mm
Band thickness 0.4-3mm 0.4-3mm 0.4-3mm 0.4-3mm 0.4-3mm
Weight 650kg 800kg 1100kg 1200kg 1350kg
Total power 7.5kw 7.5kw 14.5kw 13.4kw 17.5kw
Pneumatic pressure 0.6Mpa-0.8Mpa 0.6Mpa-0.8Mpa 0.6Mpa-0.8Mpa 0.6Mpa-0.8Mpa 0.6Mpa-0.8Mpa
Machine size 2300*700*1250mm 2800*750*1250mm 3900*750*1250mm 4300*750*1250mm 5200*900*1500mm

FAQ:
1.How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.
2.What payment do you accept?
L/C and T/T or other ways.
3.What is your delivery time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
4.What's your warranty?
If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
5.What's your srvices?
One-stop service, meet needs of the customers from individuals to international companies.
OEM service accepted.
After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
