I. PROJECT SUMMARY DESCRIPTION
As Client’s feedback to supply capacity 200TPH bucket wheel excavator from brick factory .confirmed as follows:
No.
| content
| Parameter
| Supplier
|
1
| Capacity
| 200t/h
| Confirmed
|
2
| Material
| Clay
| Confirmed
|
3
| Angle of repose
| 15
| Confirmed
|
4
| Material Moisture
| 14%
| Confirmed
|
5
| Temperature
| 10-40°
| Confirmed
|
6
| Humidity
| 10~80%
| Confirmed
|
7
| Work wind Speed
| 13m/s
| Confirmed
|
8
| Storm speed
| 33m/s
| Confirmed
|
9
| Design seismic acceleration value
| 0.05g
| Confirmed
|
10
| Belt width
| 1.0m
| Confirmed
|
11
| Belt speed
| 1.0m/s
| Confirmed
|
12
| Design ruler
| F.E.M and ISO
| Confirmed
|
13
| Working hours per day
| 16h
| Confirmed
|
14
| The length of stockpile
| 100
| Confirmed
|
15
| The height of stockpile
| 15
| Confirmed
|
16
| The width of stockpile
| 50
| Confirmed
|
17
| The length of bucket boom (from the center of slewing to the center of bucket)
|
| 8.2m
|
18
| The length of discharging boom(head pulley to end pulley)
|
| 8m
|
19
| The angle of luffing
| -10° To ﹢15°
| Confirmed
|
20
| The slewing angle of bucket boom
| ±60°
| Confirmed
|
21
| The slewing angle of discharging boom
| ±30°
| Confirmed
|
22
| Operation position
| Cabin
| Confirmed
|
23
| Lighting system
| Yes
| Confirmed
|
24
| Dust system
| No
| Confirmed
|
25
| Power supply
| Desiel（380V，50HZ，3PHASE)
| Confirmed
|
26
| Protection class
| Motor:IP55,Eletrical cabinet:IP65
| Confirmed
|
27
| Control type
| automatic(Only for reclaimer)
| Confirmed
|
28
| Luffing type
| Cylinder
| Confirmed
|
29
| Moving speed
| 2-10m/min
| Confirmed
|
30
| Allower max. ground pressure
| 18t/m2
| Confirmed
|
31
| Max. road grade
| 4°（7%）
| Confirmed
|
Customer requirements:
1.the material to be handled is clay
2.Moisture can be up to 15% -the proposed speed of the conveyors is a bit high, can you limit it to 1m/s
3.Connect conveyor bet
4.Not a long distance, around 100m between ore hopper and ore stock pile
5.The machine will move using diesel and operation of conveyor and arms using the electrical energy
The bucket wheel excavator is designed according to the national standards, suitable for the workshop, open field, for the production of coal, powder, clay and other materials.Instead of the traditional loader operation greatly save people benefit.
2. Scope of supply
The scope of supply of this project includes the following contents:

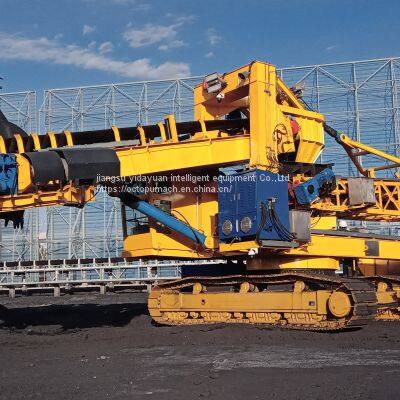

1. ST-200 bucket wheel excavator, design capacity: 200-250 tons / hour.
2. Transfer belt, 1.0m wide and 8m length; operating capacity: 200 tons / hour;
3. Roller delivery conveyor belt, 1.0m wide, 8.2m length operating capacity: 200 tons / hour;
4. Electrical control system.
5. Hydraulic control system.
6. Safety protection system.
2. Complete machine performance
2.1 Technical parameters of the complete machine
Technical parameters of the whole machine: see Table 1:
Technical parameter table of remote control bucket wheel excavator
Table 1:
order number
| name
| Technical parameters (mm)
| remarks
|
01
| Overall size: (mm) (length, width and height)
| 16200×2800×3300
|
|
Rated output: (t / h)
| 200-250t
|
|
Operating weight: (t)
| 45t
|
|
Machine operation mode:
| Remote control, manual
|
|
Equipment power configuration mode:
| Diesel generator set + power supply
| dual purpose
|
02
| Crawler specification: (mm)
| 4000x2800x400
|
|
Track plate width: (mm)
| 400
|
|
Track walking speed: (km/h)
| 0～3
|
|
Trace drive power: (kw)
| 45
|
|
Track drive form:
| fluid motor
|
|
03
| Bucket wheel diameter: (mm)
| 2500
|
|
Ring speed: r / min
| 0.8
|
|
Quantity of hopper: (only)
| 8
| Single bucket wheel
|
bucket capacity:(m3）
| 0.19
|
|
Bucket wheel pitch angle: (°)
| -8～+13
|
|
Bucket wheel drive power:
| 45
|
|
Maximum feeding capacity of the bucket wheel: (t / h)
| 200-250t
|
|
Maximum bucket rotation to turn power: (KW)
| 11
|
|
04
| Type of feeding conveyor belt: (mm)
| 1000×8000
| freeze resistance
|
Drive power of the feeding conveyor belt: (kw)
| 7.5x2
|
|
Transfer belt driving mode:
| K-series gear motor
|
|
Feed conveyor belt speed: (m/s)
| 1.6
| adjustable
|
Feed conveyor roller model: (mm)
| φ108
|
|
Channel angle of feeder conveyor belt: (°)
| 35
|
|
Type of feeding conveyor belt:
| freeze resistance
|
|
Power output of feeding conveyor belt: (t / h)
| 200-250t
|
|
05
| Transfer Type: (mm)
| 1000×8200
| freeze resistance
|
Drive power: (kw)
| 7.5x2
|
|
Delivery output: (t / h)
| 200-250
|
|
Return angle: (°)
| ±65
|
|
Upper elevation angle out of the conveyor belt: (°)
| 18
|
|
Channel angle of conveyor belt: (°)
| 35
|
|
Model: (mm)
| φ108
|
|
Channel angle of conveyor belt: (°)
| 35
|
|
The outgoing conveyor belt type:
| freeze resistance
|
|
Outbelt rotary drive type:
| Gear motor
|
|
Turn-around drive motor power: (KW)
| 11
|
|
| Motor supporting power (KW)
| Track walking drive
| 45
|
|
The bucket wheel drive
| 45
|
|
Fight cycle turn
| 11
|
|
Main material conveyor belt drive
| 7.5x2
|
|
Out of the conveyor belt drive
| 7.5x2
|
|
Out charge conveyor belt
| 5.5
|
|
Equipment power is required for power
| 136
|
|
Actual supporting power
| 180
| Consider the margin
|
| Soft starter model:
| According to the standard
|
|
PLC controller
| According to the standard
|
|
AC contactor model:
| Chint, Schneider
| domestic
|
auxiliary relay
| Chint, Schneider
| domestic
|
position sensor
| Siemens, Omron
| domestic
|
proximity switch
| Siemens, Omron
| domestic
|
| hydraulic pump
| According to the standard
| DAEWOO
|
fluid motor
| According to the standard
| DAEWOO
|
Electromagnetic proportional valve
| high quality products
| domestic
|
electromagnetic relief valve
| high quality products
| domestic
|
hydraulic control non return valve
| high quality products
| domestic
|
| Tele controller
| technical grade
| domestic
|
Remote control distance: (m)
| 100
| No obstacles
|
Configuration table of key components of bucket wheel feeder
order number
| Part name
| specifications and models
| unit
| quantity
| manufacturer
|
1
| Crawler walking hydraulic motor
| 63686N
| short for Taizhou
| 2
| DAEWOO
|
2
| hydraulic pump
| 75
| short for Taizhou
| 1
| DAEWOO
|
3
| Hydraulic drive electric motor
| Y3-225M-4
| short for Taizhou
| 1
| Shandong dragon city
|
4
| The bucket wheel drives the motor
| Y3-200M-4
| short for Taizhou
| 1
| Shandong dragon city
|
5
| Rotary bearing
|
| tray
| 1
| Dalian
|
6
| Conveyor motor
| K series
| short for Taizhou
| 4
| domestic
|
7
| Soft starter
| 45KW.
| short for Taizhou
| 1
| Delixi
|
8
| PLC
| S7-100
| cover
| 1
| siemens
|
9
| frequency transformer
|
| cover
| 2
| siemens
|
10
| Low voltage electrical parts
|
| cover
| 1
| Delixi
|
11
| Wireless communication device
|
| cover
| 1
| Bedimon
|
>>
