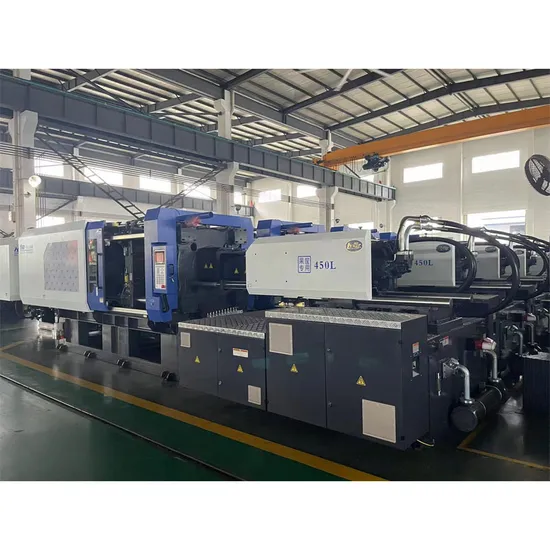

HD450L-C Haida 3300ton Basket Crate Servo Energy Saving Plastic Injection Moulding Machine

Product Description

Product Description
SPECIAL INJECTION MOLDING MACHINE FOR FRUIT BASKET
>>> 1. Specially designed high efficient large diameter screw, not only injection volume, but also shorten the storage time. 2. Using special screw cylinder, good plasticizing effect, fast melt glue, suitable for large injection. 3. Increased power system, more rapid injection speed, shorten the production cycle, improve production efficiency. 4. New rigid frame, more obvious shock absorption, more stable production. 5. The new clamping unit, coupled with a Factor of safety tie rod, improves the rigidity and stability of the clamping structure.
__________________________________________________________________________________________________________
Basic Information:

Model NO	HD450L-C		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PP, PE and recycled materials
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Zhejiang,Ningbo,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

VALUE ADVANTAGES:
Increase the injection speed, forming fast Increased displacement of the hydraulic system design, injection speed faster than the same type of products, shorten the molding cycle.
Stable injection, more worry-free The injection part adopts integral base and double cylinder balance injection device, which makes the force of the screw rod even during the injection process and improves the stability of the injection glue remarkably.
High rigidity formwork
According to the characteristics of fruit basket die, professional design template, template stress distribution uniformity, small deformation, effectively improve the accuracy of products, using pressure center template structure, effectively improve the accuracy of products.
Detailed Photos
INJECTION SYSTEM&PLC SYSTEM:
The injection unit optimally designed for injection molding provides higher accuracy and ensures greater stability. The screw length-diameter ratio is more reasonable, the plasticizing ability is stronger, and may match the Special Engineering Plastic Screw, guarantees the product quality optimization. The Integral Guide Rod Seat is novel and beautiful, strong and reliable, and the injection is faster, more stable and more compact. Modular design, fully meet the requirements of personalized processing technology, to provide customers with more choices.
__________________________________________________________________________________________________________________
CLAMPING SYSTEM:

Adopting the international advanced concept, changing the mechanical properties of the clamping mechanism, significantly reducing the deformation of the template, and effectively improving the precision of the products. The distance between the pull rods is larger, and the mould shifting stroke is longer. Large ejection space, standard thimble forced reset mechanism, to meet the requirements of special mold forced reset. The platform shortens the forming cycle, improves the production efficiency, various hydraulic ejection modes, special processing of the pull rod, and the strength is reliable.
---------------------------------------------------------------------------
HYDRAULIC SYSTEM:

1, The standard equipped with servo energy-saving pump system, using high-performance servo motor and famous oil pump, with high-quality and reliable driver, perfect to achieve high energy-saving, high precision, high response, low noise, low oil temperature and other excellent characteristics, the utility model has the advantages of compact structure, good self-priming property of the oil pump and little influence by the work
2, Equipped with world-class brand hydraulic components, reasonable oil arrangements, smooth and reliable operation, significantly improve the efficiency of the heat will be smaller control;
3, Equipped with self-sealing oil filter, machine maintenance easy;
4, Eccording to customer demand, flexible matching and installation of a variety of special functions.
____________________________________________________________________________________________________________________
CONTROL SYSTEM:

Water-proof and dust-proof sealed electric box is safe and reliable; the software functions are more powerful and can meet the needs of various mould forming processes; the Internet management system is reserved to realize the remote real-time monitoring and maintenance diagnosis of each injection molding machine, reasonable arrangement of production and other advanced management

Product Parameters

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	75	80	85
	Screw L/D Ratio	L/D	22.9	21.9	20.3
	Injection Volume	cm3	1679	1910	2156
	Shot Weight	g	1528	1738	1962
	Injection Pressure	Mpa	186	164	145
Clamping Unit	Clamping Force	KN	4500
	Opening Stroke	mm	750
	Mould Thickness(Min-Max)	mm	300-780
	Space Between Tie-Bars	mm	780×780
	Ejector Force	KN	126
	Ejector Stroke	mm	200
General	Motor Power	KW	41
	Heater	KW	30
	Pump Pressure	Mpa	16
	Machine Dimension	m	8.49×2.23×2.2
	Machine Weight	T	16.5
	Mould Orientation Ring Diameter	mm	ф200
	Nozzle Radius	mm	SR15

Application
APPLICATION FIELD:
Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.


Packaging & Shipping
