Product Description
Product Description

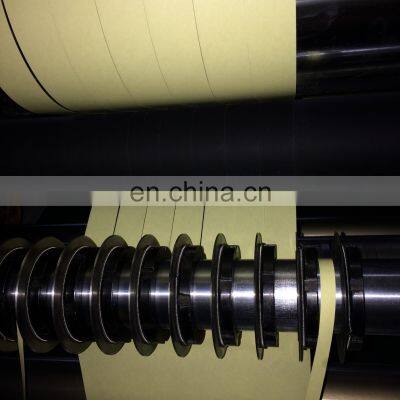

Product Category 700mm slitting rewinding machine 1100mm slitting rewinding machine 1300mm slitting rewinding machine 1600mm slitting rewinding machine mica tape slitting rewinding machine laminating and slitting machine slitting rewinding machine with lamination function slitter Slitting Rewinder rewinding and unwinding machine Product DescriptionNomex Paper Slitting MachineIII. machine main configuration and specifications(A) unwinding institutionsThe device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from Bohou or paper core non-circularity different and wrinkled.Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum. Unwinding specifications: maximum width of 700mm / 1100mm/ 1300mm/ 1600mm , phi diameter 800mmPaper tube clamping method: air shaft clamping Specifications: 3in 1 root of the air shaft 1 piece A pneumatic gun 1 pieceTension control: closed-loop tension control. The output control: 100N.M magnetic brakes 1 pieceCorrection perform: tracking the substrate by the photoelectric eye correction controller for a given signal, the motor drive ball screw execution. Specifications: photoelectric eye 2 piece Two linear bearings 2 piece A corrective institutions 1 piece The photoelectric eye fine-tuning 2 sets (B) cutting machine configuration The agency uses carbide precision disc disc knife (slitting relatively thick aluminum foil, paper and other materials) or (and) straight knife cutting (slitting general plastic film), neat incision, long life, cutting up and down knife shaft width adjustment processing, between the upper and lower blade shaft gear speed matching. Turning the handwheel implementation under the knife, the knife continues to rotate automatically rely.Tool axis: under the knife shaft each one2 locking device: a fast by knife device, able to lock on the knife shaft, to avoid slitting knife from the up and down or move due to quality problems.Specifications: a rocker arm A locking shaft With gear A worm gear3. Row waste: by blowing high pressure air feed tube diversion, the scrap material to exclude Specifications: 1 fan A duct4 main wall: steel wall panels, effective shock absorption, enabling machine high-speed and stable operation. Specifications: 30MM5. Guide rollers: chrome plated, polished. Specifications: φ80 × 730mm certain (C) the rolling bodiesThe agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure. The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.Winding Specifications: width up to 700mm, diameter 420mmPaper tube clamping means: air shaft clamp (according to customer material specifications)Specifications: 3in 2 root of the air shaftRewinding pressure: differential pressure pneumatic compression, the pressure can be adjusted by pneumatic pressure regulatorSpecifications: Pressure arm 2 Cylinder 2Tension control: magnetic motor constant torque outputSpecifications: motor controllerWinding execution: magnetic motor 2 (specifications 50N.M) (D) transmission mechanismThe inverter is used to control the main motor operation, convenient lifting speed, the speed adjustment the excessive soft, smooth.Drive mode: General inverter control of AC motor driveSpecification: 4KW exchange motor Supporting vector inverters (domestic well-known brand, quality assurance) (E) Major appliances:Centrally electric control cabinet box, elegant, and easy to operate.Operation of a cabinetComptroller display a realistic real-time linear velocity, Hutchison meters automatic stop function (with deceleration stop function, Hutchison Mickey the error)Optical correction controller 1Button, contactors, air switchesUsers themselves:1.50 Hz, 380V three-phase five-wire power supply2 foundation treatmentMounting equipment and commissioning of the raw materials, auxiliary central driven surface polyester tape mica tape jumbo roll winding slitting machine polyester tape mica tape jumbo roll1. PCL controling system 2. Tension is controlled automaticallyProduct Detail ModelDP-1100/1300/1600Max feeding width1100mm/1300mm/1600mmCutting area6kwCutting speed150m/minWeight1200/1500kgRewinding diameter600/800mmWinding diameter400mmPrecision+/_0.1mmProduct KeywordsNomex Paper Slitting Machine,TPU Film Slitting Machine,automatic thermal paper slitting machineFeatures:Max unwinding diameter: 600mmMaximum rewinding diameter: 420mmPut the reel diameter: 3 inchRewinding diameter: 3 inchRoll surface width: 730mmMechanical speed: ≤ 180m/minMaximum working width: 700mm / 1100mm / 1300mmMinimum slitting width: 5mmCorrection accuracy: ± 0.3mm Max unwinding diameter: 600mmMaximum rewinding diameter: 420mmPut the reel diameter: 3 inchRewinding diameter: 3 inchRoll surface width: 730mmMechanical speed: ≤ 180m/minMaximum working width: 700mmMinimum slitting width: 5mmCorrection accuracy: ± 0.3mmThe machine consists of corrective unwinding institutions, cutting structure, the rolling bodies, transmission and electrical control. Contact UsContact→Website: Tel: +86 13732669376 ( whatsapp)Skype: dapengmach
>>
