| We have rich export experience! Our products are exported to many countries in Africa, Southeast Asia, and South America, and customers are also very satisfied with our products and services. We have the ability to solve any problems you may encounter. We will provide you with the most suitable trailer configuration, the best price, and the best quality. Looking forward to your consultation!! |

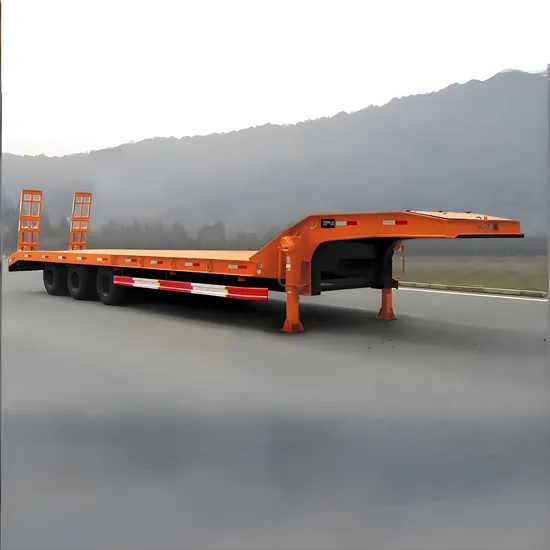

| Product name | Low bed Trailer |
| Brand Name | Jutongda |
| Overall Dimension (Lx W x H)(mm) | 13500*3000*1650 |
| Wheelbase(mm) | 8580+1310+1310 |
| Curb Weight(KG) | 10000 |
| Loading capacity(KG) | 60000 |
| Axle | 3*FUWA or BPW 10/13/16/20Ton |
| Rim type | 9.0 22.5 x12 pcs |
| Suspension system | Mechanical suspension/ pneumatic suspension |
| Steel Spring | 10/10/10 |
| Frame | The height of the beam(Carling ) is 500mm,upper plate is18mm,down plate is 20mm,middle plate is 14mm.according to the buyer'srequirement |
| Platform plate | 3-8mm Diamond Plate |
| Traction Pin | JOST 90# (3.5'') or 50#(2.0'') |
| Landing Leg | 28T load landing leg |
| Stair Folding Rear | Two pieces |
| Ramp | The ramp is powered by a hydraulic pump or manual operation |
| Brake system | Dual Line braking system |
| Electrical system | 24V,7 Pole plug |
| Tool box | One pieces(1000*500*500mm),equipped with 1 unit tire spanner,1 unit gudgeon sleeve and 1unit cranking bar |
| Painting | Color by customer's requirement |
| Packing | Polish with wax before shipping |
| Low bed semi trailers have a lower deck height compared to standard trailers, allowing for easier loading and unloading of tall and oversized cargo, without being restricted by height limitations. |
| With a sturdy chassis and high-quality materials, this semi-trailer has exceptional load-bearing capacity. It securely transports heavy containers and oversized cargo, even in challenging terrains. |
| Low bed semi trailers are versatile, transporting a wide range of equipment and cargo, such as construction machinery, excavators, bulldozers, cranes, wind turbine components, transformers, and more. They can be customized to suit different load configurations and specific transportation requirements. |
| Shandong Jutong Special-Purpose Vehicle Co., Ltd., located in Liangshan, Shandong, China, known as the manufacturing base of special-purpose vehicles, is primarily engaged in the sales of used trucks, manufacturing of semi-trailers, trailers, and trailer parts. The company occupies an area of 1.5 million square meters and has been approved by the Ministry of Industry and Information Technology of China as a designated manufacturer of special-purpose vehicles. It is also one of the earliest companies in China to obtain the Chinese Well-known Trademark, ISO, CCC, and compulsory product certification. Currently, the company has over 1,000 employees, including 670 senior technical personnel and 16 professionals. We possess strong manufacturing capabilities and advanced equipment, including more than 118 sets of manufacturing and testing equipment such as CNC cutting machines, automatic welding machines, WADF, CNC plasma cutting machines, X-ray detectors, and four-wheel alignment devices. With our strong manufacturing capabilities and rigorous inspection procedures, we have always been at the forefront of China's special-purpose vehicle manufacturing industry. We strive to achieve business and friendship with our customers on the basis of mutual benefit and fairness. Through accumulated practice and experience, our team continuously improves our products. Together, let us work hard and create a bright future. We look forward to your visit or inquiry. |
