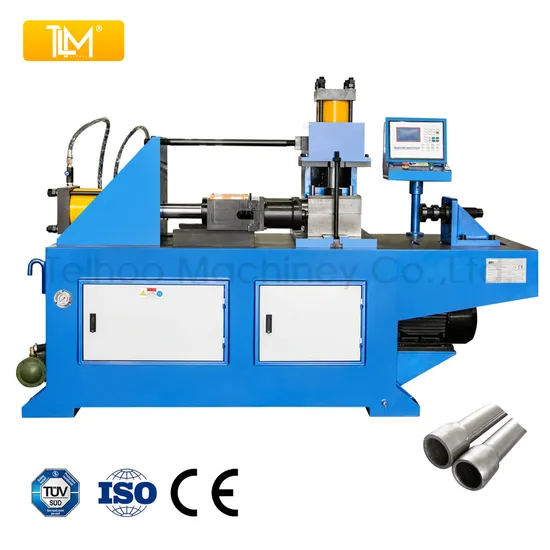

Tube Taper End Forming Machine Automatic Metal Tube Reducer Pipe End Shrinking Machine

Product Description

Product Description

Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe etc.

Main specification

Type	SG-40	SG-60	SG-80	SG-100
Max tube(mm)	φ40*2.0	φ60*2.0	φ80*3.0	φ100*3.5
Max processing length(mm)	110	130	150	180
Oil pressure(Mpa)	14	14	14	14
Working speed	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s
Size(cm)	180*45*120	200*50*130	290*70*140	300*75*150
Weight(kg)	600	950	1600	1800
Remark	1.The max processing length can according to customers requirement.

1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers' requirements

Product Display
Product Application
Exhibition
Certificate Display
Company Profile
1. Q: How to choose the pipe/tube bending machines? A: You have to inform us following details: - Max. outside diameter: - Wall thickness range: - Bending radius (CLR): - The pipe material: - The drawings if possible 2. Q: What is the difference for NCB, NCBL and CNC machines? A: NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic. NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending. CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending,multiple tooling stack are available for two and more different bending radius (CLR). 3. Q: What is the machine's control? A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, DWG readout, remote assistance etc. 4. Q: What is the biggest bending capacity you could offer? A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. 5. Q: Where is your factory located? How can I visit there? A: Our factory is located in Zhangjiagang city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station. 6. Q: What is the certificates available? A: CE & ISO9001 7. Q: How is the training and after sales service? A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service , or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100-USD150 per day..

---
