Seaflo 12V High Pressure Pump 60psi 3.0gpm Small Electric Agricultural Water Pump 3 Buyers

Product Description

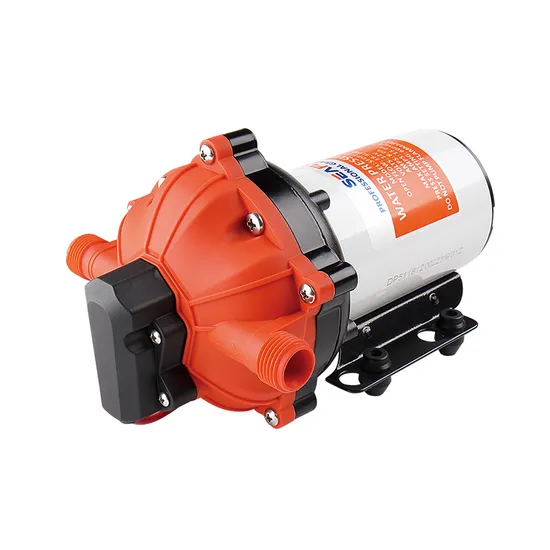

SEAFLO Solar Agricultural Spray Car Wash High Pressure Diaphragm Water Pump 12V 18.9LPM/5.0GPM 60PSI

PUMP
Type	5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch
Max Recommended Temperature	60° C(140° F)
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 60 PSI :48 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports	1/2"-14 MNPT
Weight	6.1 lbs (2.8 kg)

MOTOR
Leads	14 AWG, 13" (33cm) long with 2-Pin connector/Leads
Duty Cycle	Continuous
Max.Amp Draw	17.0 A
Fuse	25.5 A

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow (GPM/LPM)	Control Type	Max Draw	Shut-off Pressure (PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
SFDP1-030-060-51	12V	3.0 / 11.5	switch	10.0A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-030-060-51	24V	3.0 / 11.5	switch	5.5A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP1-040-060-51	12V	4.0 / 15.0	switch	13.0A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-040-060-51	24V	4.0 / 15.0	switch	7.0A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP1-050-060-51	12V	5.0 / 18.9	switch	17.0A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-050-060-51	24V	5.0 / 18.9	switch	9.0A	60 / 4.2	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads

Consult factory for other available models.
PERFORMANCE

3.0GPM PRESSURE FLOW CURRENT PSI BAR GPM LPM AMPS 0 0 2.70 10.22 4.3 10 0.69 2.04 7.72 5.3 20 1.38 1.65 6.23 5.9 30 2.07 1.40 5.31 6.5 40 2.76 14.50 54.81 7.2 50 3.45 1.03 3.91 7.6 60 4.14 0 0 0

Heat Rise
DIMENSIONS
SHIPPING INFORMATION

Unit Pump Weight	6.09 lbs (2.76 kg)
Selling Unit Size (L x W x H)	23.62" x 6.26" x 11.50 (28.4 x 15.9 x 14 cm)
Selling Unit Weight	6.66 lbs (3.02 kg)
Master Carton Size (L x W x H)	19.69" x 11.81" x 11.20" (50 x 30 x 31 cm)
Master Carton Qty	6 pcs
Master Carton Weight	42.51 lbs (19.28 kg)

FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Xiamen Port.

---
