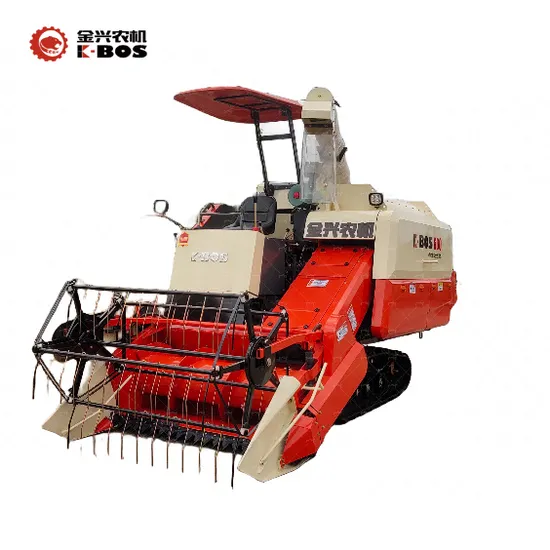

4LZ-2.0 Combine Harvester, is suitable for rice, wheat, rape seeds and other granular crops, its widder rubber track with teeth, it performance very good in water field.
This machine is easy for operation and maintence, it is a safety and energy-saving machine. Product Parameters
| Overall Dimension | Length×Width×Heights ( mm ): 4550×2350×2300 |
| Weight (kg) | 2700 |
| Feeding Capacity( kg/s ) | 3.0 |
| Harvesting Capacity(hm²/h): | 0.2-0.45 |
| Engine | Engine Model: 498BT/BZT/L; |
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) |
| Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. |
| Driving System | Crawlers(mm): 90*48*400, or :90*48*450 or :90*48*500 |
| Minimum Ground Clearance (mm): 280 |
| Type of Gearbox: Mechanism + HST(3F, 3R) |
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 |
| Cutting Bar Length ( mm ): 2000 |
| Rape Seed Extension: Optional |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Main Threshing Cylinder Size Diameter × Length ( mm ): 540×1285 |
| Assistant Threshing Cylinder Size Diameter × Length ( mm ): 540×650 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve. |
| Concave Sieve: Grid × 2 |
| Grain Storing | Option 1: Big Grain Tank with Unloading Auger, Capacity ( L ): 1600 |
| Option 2: Small Tank Manual Operation. |
