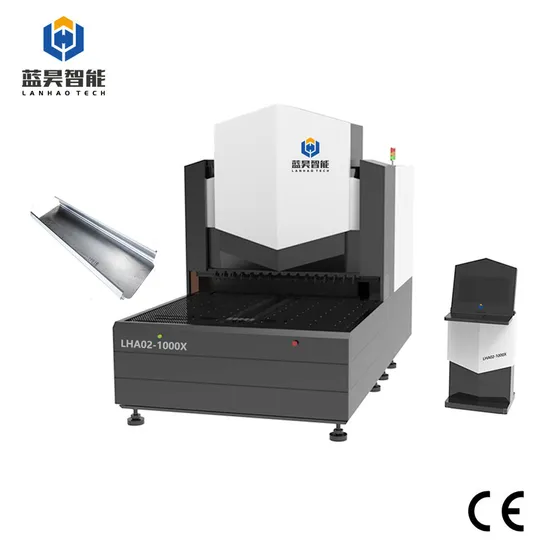

CNC Auto Fold Sheet Metal Panel Bender Lanhao Flexible Bending Machine

Product Description

LHA-X series intelligent flexible bending center, using suction cup loading method, the whole machine is designed and produced in accordance with high-precision machine tool standards. Suitable for flat surface metal sheet, no stamping, no holes, can be used for suction cup loading type of work piece. The equipment has been iteratively upgraded in multiple versions, and the long-term operation is stable and reliable, which greatly improves the production efficiency of the enterprise
Product Parameters

Parameters	LHA-1000X	LHA-1400X
Max. bending speed	0.2 second/time	0.2 second/time
Max. bending width	1000mm	1400mm
Bending height	170mm	170mm
Rated voltage	380v	380v
Full power	25Kw	34Kw
Average power	about 1.1Kw	about 1.5Kw
Machine size	285*150*280cm	365*190*290cm
Weight	about 7t	about 10t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 304 stainless steel 1.0mm	UST 515N/mm2 304 stainless steel 1.0mm
	UST 410N/mm2 cold panel 1.2mm	UST 410N/mm2 cold panel 1.2mm·
	UST 265N/mm2 aluminum panel 1.6mm	UST 265N/mm2 aluminum panel 1.6mm
Minimum panel thickness	0.35mm	0.35mm
Min. Workpiece Size (four sides bending)	140*210mm	140*210mm
Min. Workpiece Size two sides bending)	140mm	140mm
Max. bending size	1000*1000mm	1400*1400mm

Lanhao flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.

---
