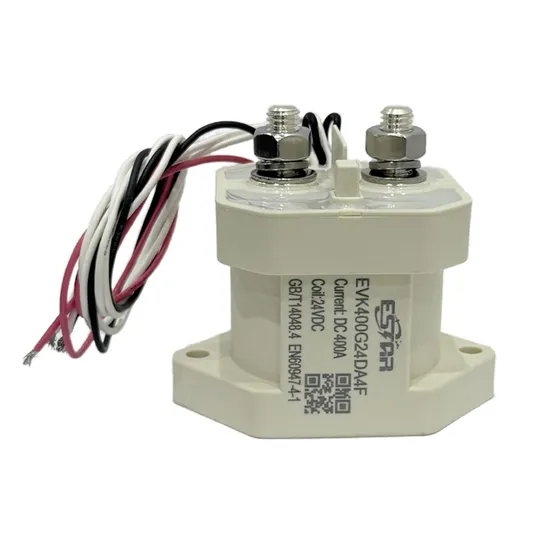

Estar 400A/1000VDC Coil 24V High Voltage DC Contactor for Electric Industrial Vehicle Forklift

Product Description

Characteristics 1. This 400A DC contactor can withstand high voltage.
2. Hermetically sealed with epoxy, avoiding electric arc leaking efficiently, safe and reliable for use.
3. The nitrogen sealed inside the outer casing prevents oxidation and damage of the contact point, ensuring stable performance of the DC contactor
4. It can work through remote control.
5. Protection level of the contact point is IP67.
6.Applications: EV fast chargers, energy storage systems, electric vehicles, etc.
Product Parameters

Contact Arrangement	SPST-NO
Auxiliary Contact	Optional
	Min. load: 8Vdc, 100mA; Contact resistance: ≤100mΩ
Voltage Rating	12-200Vdc, 12-750Vdc, 12-1000Vdc, 12-1500Vdc
Current Rating	1-400A
Break Current, Max(only 1 time)	2000A 320Vdc
Contact Resistance (initial)	≤1mΩ(at 400A)
Insulation Resistance	Initial: 100MΩ 1000Vdc
	After test: 50MΩ 1000Vdc
Coil Voltage	12Vdc	24Vdc	48Vdc
Coil Power	≈5.76W	≈5.76W	≈5.76W
Mechanical Life	2x105 cycles
Main Contact Mounting	M8 internal thread
Dimensions	80.5×66.6×73.8mm
Weight	≈430g
Operating & Storage Temperature	-40~+85ºC
Operating & Storage Humidity	5%~95% RH.
Altitude	≤4000m
Certification	CE, UL, CCC

Dimensions
Production Lines
Packaging & Shipping
FAQ 1. What DC contactors do you manufacture?
We manufacture DC contactors of rated current from 10A upto 1000A and rated voltage from 12Vdc upto 1500Vdc.
2. What's your lead time?
Usually the goods can be ready for shipment within 2 weeks after the order is confirmed.
3. What's your payment terms?
30% of the order value should be paid by T/T in advance as deposit, and the balance should be paid by T/T before the goods are sent out from our warehouse.
If the order is small, 100% of the order value should be paid in advance.
4. What's your warranty period for the products?
Quality of our DC contactors can be guaranteed within 2 years. 5. Do you offer samples?
Yes, the samples of our DC contactors can be sent to you to check the quality.

---
