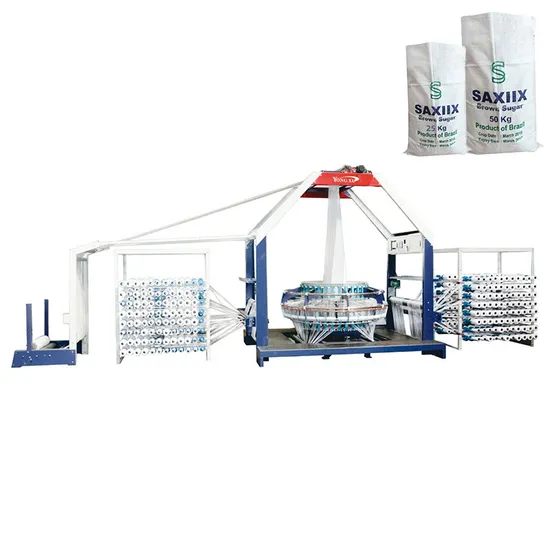

Plastic Woven Fertilizer Rice Cement Corn Maize Sack Production Line

Product Description

Product Description

Application
To weave PP/HDPE fabric for woven bag, cement bag, rice bag, flour bag, pet food bag, animal food bag, fertilizer bag, chemical bag, etc.
Technical Data

S/N.	Items	Parameters
1)	Model	YX-FYB500/4	YX-FYB750/4	YX-FYB1200/4	YX-FYB1500/4
2)	Shuttle	4 Shuttles	4 Shuttles	4 Shuttles	4 Shuttles
3)	Folded width	120-500mm	300-750mm	600-1100mm	950-1300mm
4)	Production speed	2200meter/day, depend on the final width of yarn.	2200 meter/day, depend on the final width of yarn.	2000meter/day, depend on the final width of yarn.	2000meter/day, depend on the final width of yarn.
5)	Number Of Warp Creels(pcs)	576	768	896	1120
6)	Main motor power(kw)	1.5kw	2.2kw	2.2kw	3kw
7)	Total power(kw)	2kw	2.7kw	2.7kw	3.5kw
8)	Prime motor rotational speed(r/min)	160-200	160-200	150-190	120-160
9)	Installing Dimensions(L*W*H)	8400*2000*3200mm	8600*2200*3200mm	9200*2500*3200mm	9500*2900*4000mm
10)	Weight(kg)	1200 kg	1500 kg	1800 kg	2000 kg

Composition Of The Standard Loom

Frame	1 set
Creel Stand	2 unit
Central drive system (small cam, A.C. motor)	1 unit
Positive warp infeed system with torque motor	2 unit
Warp break detecting system	1 unit
Weft break detecting system	1 unit
Weft pre exhaust detecting system	1 unit
Shuttle assembly	4 units
Shuttle wheel	with
Shuttle motion guide	1 unit
Weaving size ring	1 unit
Bobbin storage above the intake	2 units
Manual operation control unit	3 units
Fabric haul-off system	1 unit
Electronic meter counter	1 unit
Standard width surface winder	1 unit
Loom control system	1 unit

Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.
Detailed Photos

How to make PP woven sack
Certifications
Work shop
Shipping & Customer Visiting

---
