Industrial Heavy Duty Steel Structure Pallet Racking for Warehouse Equipments Storage

Product Description

Industrial Heavy Duty Storage Steel Pallet Racking in Warehouse
Product Description

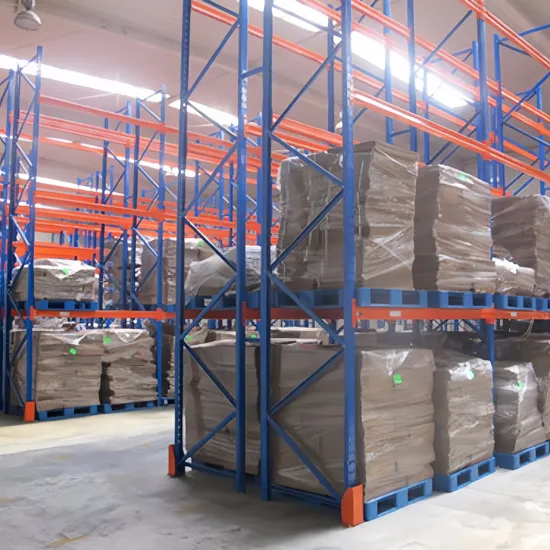

Welfor pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easily to your specific needs.
Detailed Photos
Features
1.100% accessibility to individual pallets;
2. Easy picking lower levels;
3. Good storage density;
4. Easily installed and repositioned;
5. No special lift trucks required.
Product Parameters

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220Depth: 1000MM/900MM/1020MMWidth: 2700MM/2300MM/2500MM/2432MMHeight: pitch is adjusted by increments of 75mm
	Customized Pallet: other special size( you can contact us directly)
Beam range of pallet rack	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright range of pallet rack	80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm; Thickness: 1.5~3.0mm
Color of pallet rack	Bule and Orange or Customized
Weight capacity of pallet rack	5000KG per level max ; 1500KG per pallet max
Package of pallet rack	Packed by poly sheets and straps and pallets; Other parts and accessaries are packed by cartons; straps; wooden pallets, ect.
Lead time of pallet rack	20-25 working days

Production Process
Packaging & Shipping
Qiuck quotation Q: How can I get your quick quotation on my pallet racking project?
A: Usually for a quick quotation, we need to know the following information:
1) Pallet Racking Dimension: Length*Depth*Height?
2) Number of beam levels?
3) Loading Capacity of each level?
4) Racking Quantity?
But if you are not sure of these information, then we could make a design for you with the following information:
1. Warehouse drawing (length*width*height) if CAD drawing is available?
2. Pallet size with goods (length*width*height)?
3. Pallet weight with goods?
4. Width of forklift working aisle?
FAQ
1. What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2. What is the lead time
++ 20-25 working days.
3. What is payments methods you can accept?
++ T/T and L/C are welcomed.
4. How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5. What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
