Safe and Environmentally-Friendly 2500-7600 Output Apron Width Non Woven Double-Belt Cross Lapper
US$200,000.00
1 set
(MOQ)
Basic Info.
Model NO.
YYPW-III
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000, UL
Customized
Customized
Condition
New
After-sales Service
1 Year Warranty
Lapping Speed
up to 70m/Min
Input Apron Width
to Match The Card Width
Output Apron Width
2500-7600
Product Evenness
CV≤4%
Installed Power
42kw
Consumption
Low
Transport Package
Wooden Case
Specification
output apron width: 2500-7600mm
Trademark
YINGYANG
Origin
Changshu, Jiangsu, China
HS Code
8449009000
Production Capacity
500sets/Year
Product Description

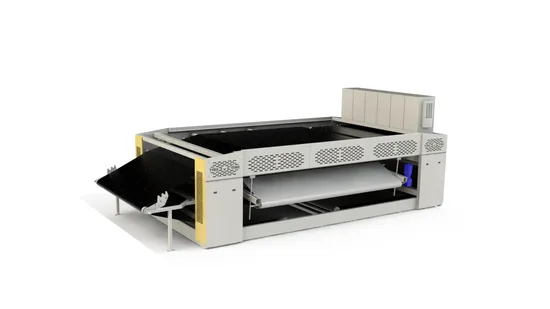

Safe and Environmentally-friendly 2500-7600 Output Apron Width Non Woven Double-Belt Cross Lapper Product Description function: A higher speed unit to fold and plate the webs from carding machine evenly into the required weight and thickness and then to feed the batt to the next procedure. Main specification:
input apron width
to match the card width
output apron width
2500-7600
lapping speed
≤70m/min
product evenness
CV≤4%
installed power
42kw
Characteristics: (1)The machine adopts advanced servo motor arive and utilizes special servo motion control linkage. (2) The machine has the function of transverse profile for a good evenness in cross direction. (3) The machine use lifetimeanti-static light weight lattice transmission system with good lateral stiffness and high conductivity. (4) The unit has a high quality and profiled frame with high rigidity and not easily deformed. (5) This machine employs unique rectify control with high sentivity. (6) Reciprocation uses high strength synchronized belt drive units. (7) The machine running is stable and low noise with long service life. (8) Conveying and transmission lattices utilize pneumatic control with constant tension,auto pressure settings and alarm functions giving safe and reliable operation. Detailed Photos Company Profile Certifications Packaging & Shipping FAQ
