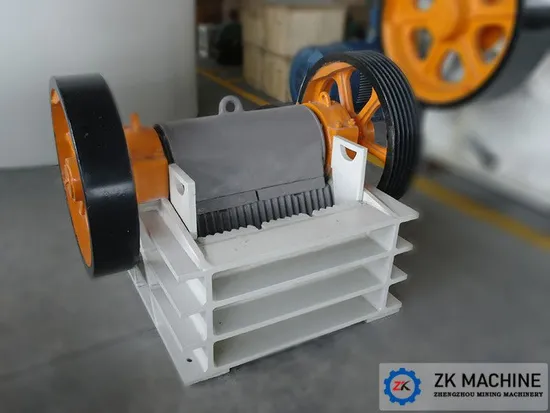

Mineral Crushing Machine Limestone Jaw Crusher

Product Description

HENAN ZHENGZHOU MINING MACHINERY CO., LTD was founded in 1956, after more than half a century of development, has now become a domestic first-class modern machinery manufacturing enterprises. Product marketing at home and abroad.
ISO Certificated Jaw Crushers Manufacture From China
Jaw Crusher, Crusher, Crushing Machine
Application of Jaw Crusher:
ZK Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Jaw Crusher series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.
The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.

model	Size of feed opening	Max feed size	Discharge range opening	Capacity (m3/h)	Motor power (kw)
	(mm)	(mm)	(mm)
PE-250x400	250x400	210	20-60	3-15	15
PE-1000x1200	1000x1200	850	195-280	190-275	110-132
PE-1200x1500	1200x1500	1020	150-300	250-500	160
PEX-150x500	150x500	120	10-40	3-13	11
PEX-300x1300	300x1300	250	15-50	20-60	75

---
