High Frequency Vacuum Electron Triode 7t69rb

Product Description

7T69RB, it is metal ceramic structure, directly heating thorium tungsten cathode triode, cooled by forced air. The max working frequency 110MHz, the max anode dissipation power 4.5kW, the anode max output power 9kW. The tube is mainly used as oscillator of industrial high frequency heating equipments. Electrical Characteristics

Filament Voltage	12.6V
Filament Current	35A
Amplification Factor	21
Transconductance	13mA /V
Interelectrode Capacitances
Grounded Filament
Input	29pF
Feedback	1pF
Output	15pF
Weight	2.9kg
Maximum Height	240mm
Maximum Diameter	127mm
Operating position	Vertical
Max temperature at any point tube envelope	250ºC
Cooling	Forced air

Limit Working Conditions:

DC Anode Voltage	8kV
DC Anode Current	2A
DC Grid Current	0.5A
Grid Dissipation	150W
Anode Dissipation	4.5kW

Typical Operation:

DC Anode Voltage	7kV
DC Anode Current	1.8A
DC Grid Current	0.32A
Grid Dissipation	150W
Anode Output Power	9kW
Grid Resistance	3.5kΩ

Dimension(mm)

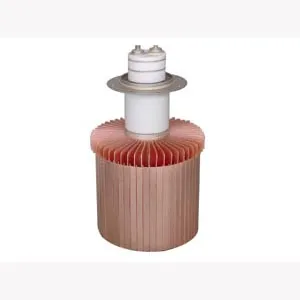

Product Picture
Product Description 7T69RB,FU-946F is a metal ceramic Rf power tube heating designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tetrode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
We manufacture the following all models.
FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S.
FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F.
FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.
GU84B, GU74B, GU78B.
FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212.
BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2.
3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158.
YC-156,YC-156A,YC-179,YC-236,YC-257.
3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3,
3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7.
3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7.
4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A.
CTK12-4, CTK12-1, CTK15-2, CTK25-4, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL12-1, ITL3-1, ITL5-1, ITL9-1, ITL15-2.
TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.
E3061, E3062, E3062E, E3069, E3130.
RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK.
8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R.
6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB.
SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. Certifications
