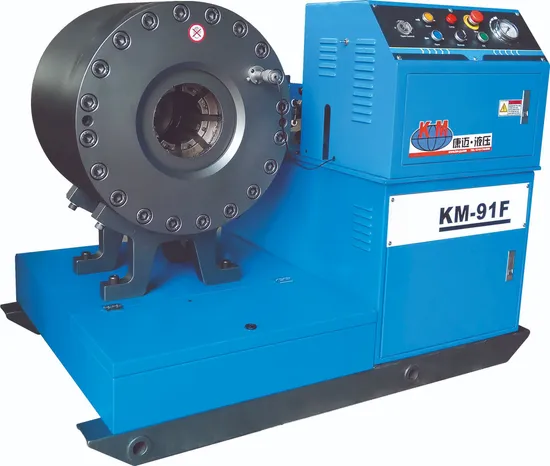

Customized Max Opening Crimping Machine Km-91f for Rebar/Steel Rope

Product Description

Heavy hose crimping machine KM-91F-440-J has strong force and big opening. It can crimp big hose and had service in oil pipe, rebar, rope steel industry.
Of course, hose crimping machine KM-91F can customized as per customer work condition in oil pipe, rebar, rope steel industry.
The standard hydraulic crimping machine KM-91F techincal data as following:
The cusomized crimping machine KM-91F as per your condition.

Crimp range	76mm-200mm
For hydraulic hose	3-6Inch 4SP
Max opening without dies	180mm
Opening	28mm
Force	1040T
Cycle time	12s
Voltage & Power	380V-50HZ-3PH
Optional voltage	220V,440V
Pump	Piston pump 35min/L
Dies sets	18
System pressure	31.5Mpa
Comuter control	Optional
Weight without oil	650KG
Shelf+quick change	No
Electric limit switch	has
Electric control with touch screen	No

Hose crimping machine KM-91F applition:
1. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 3" to 6" internal hose pipe.
2. For oil pipeline, oil engineering maintaince.
3. For rebar, steel rope.
Hose crimping machine why not choose kangmai ?
1. kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.
2. The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.
3. Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard. Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on. Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment. Everything is ok, the inspector signed and machine allow to go out the facotry.

4.KANGMAI HYDRAULIC Pay attention to package so that the machine can reach to client safely:
5. KANGMAI HYDRAULIC PAYTATION SERVICE AND TECHINCAL SUPPORT:
(A) tell you, my dear clients- the route of vessal.
(B) take the photo of machine production condition and package condition to you-my clients.
(C) Apply free container yard of your port, my dear client give you engouh time to clear your country customer.
(D) when you get our hose crimping machine, I will tell you again how to operation the machine and how to maintaince the hose crimping machine.
(E) pay a return visit after you use our machine 2-3 hours. Offer some suggestion again about maintaince machine so that you can use kangmai machine for a long time.
(F) technical support: (1)24 hour technical support available
(2)We can ask our engineer to your mentioned address if
there is any need.

---
