Nigeria Tanzania Malawi Hotale China Morden Rice Whitener Paddy Process Equipment Mill Plant Rice Milling Machine Factory Price

Product Description

Nigeria Tanzania Malawi 30tpd Rice Milling Plant Sand Roller Rice Whitening Machine,Rice milling machine

Product Description
Basic functions and features of AGRISE MNMS series Rice Whitening Machine
MNMS series single and double roller horizontal low-temperature sand roller rice whitener
is a high-efficiency and energy-saving rice mill produced by our company's latest technology. It is a newly developed equipment for roughening and whitening brown rice based on the processing technology needs of production lines with different outputs in the market. This machine is suitable for roughening and whitening japonica rice, ordinary indica rice and high-quality indica rice, etc., and can meet the customer's requirements for processing rice of different precision levels to the greatest extent. It can process one meter of standard rice with one machine, or can process two or more machines in series to process special rice. It is the latest generation of domestic advanced equipment for roughening and whitening large-scale brown rice.
Overall structure of MNMS series horizontal sand roller rice milling machine
Main structure of the machine
MNMS series horizontal low-temperature sand roller rice whitener consists of frame components, rice cooling device, whitening chamber components, storage and feeding components, electronic control components, transmission mechanism, bran suction system and air jet fan.
a) Whitening chamber components: It consists of a propeller, sand roller, material dialing roller, movable screen bracket, fixed screen bracket, screen plate, pressure screen bar, movable rice knife, discharging parts, etc.
b) Frame and transmission mechanism. The frame and motor frame are self-contained, strong and stable.
Working principle of MNMS series rice whitener
The rice flow enters the rice milling chamber from the storage and feeding parts, and is pushed to the whitening chamber by the propeller. Under the interaction of thrust, wind force, sand roller, screen, layering and a certain rotational speed, the effect of roughening and whitening is achieved. .
AGRISE MNMS series rice whitener machine features
a) Using a structure that combines large air supply inside the rice chamber (extra large inner hole of the spindle, large air supply at the feeding area, and independent air blowing fan) and external strong air blowing, the temperature of the rice is low, and the rice after the machine contains bran powder Small amount.
b) Grinding with ultra-long sand rollers further balances the pressure in the rice chamber, resulting in good roughening and whitening uniformity.
c) Less breakage and low energy consumption per ton of meters
d) The material control part adopts rack and pinion transmission, making material control simpler and more accurate.
e) The motor is installed inside the machine, occupying a relatively small area, and is simple and convenient to install and debug.
f) Simple and convenient operation and maintenance
Noise condition of MNMS series rice whitener:
The operating noise of the whole machine is less than 85 decibels.
Product Parameters

Model	Capacity(t/h)	Power(kw)	Air Volume(m3/h)
MNMS16	1-2	15/18.5	1000-1500
MNMS18	2-3	18.5/22	1500-2500
MNMS25	3.5-4.5	30/37	2000-2500
MNMS30	4-5	37/45	2000-2500

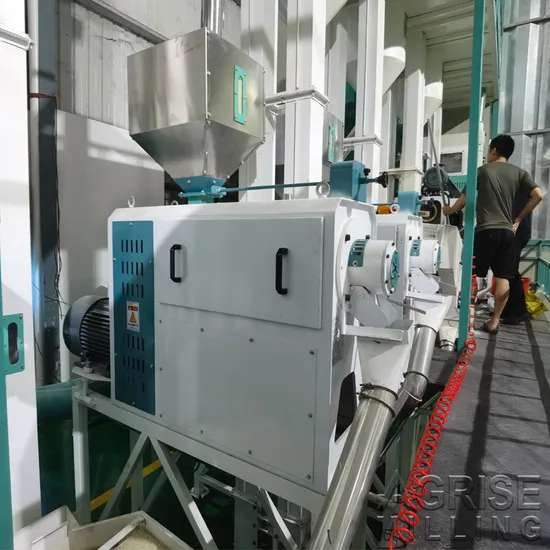

Detailed Photos
Packaging & Shipping
Customers Visiting
3D Rice Mill Display
AGRISE Rice Mills Display
WELCOME TO CONTACT US FOR MORE INFORMATION

---
