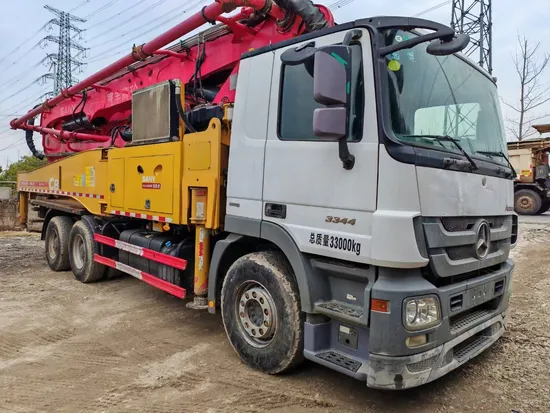

Used 2018 Sani 47m Concrete Pump Truck with Benz Chassis

Product Description

2018 Used Sani 47m Concrete Pump Truck with Benz Chassis
Product Description
Highly Reliable
· · Professional Supplier for Used Concrete Machine for Over 10 Years
· · Machines made by International authoritative-certificate lighthouse factory & world-class manufacturing capability
· · Optimized key parts with ultra-high strength steel
· · Open hydraulic system & high configuration
· · Benz Actros 3344 chassis
· · Stable signal & precise control Product Parameters

SY5320THB 490C-8A 49M C8 Parameters

			SY5320THB 490C-8A
Vehicle parameters	full length		11995mm
	total width		2500mm
	Total height		3990mm
	Machine weight		32450kg
Boom leg parameters	Boom vertical height		48.5m
	Boom horizontal length		43.5m
	Boom vertical depth		30.8m
	Minimum unfolded height		13.9m
	The first section of the boom	length	9760mm
		corner	90°
	Second section arm	length	7670mm
		corner	180°
	Third section arm	length	7410mm
		corner	180°
	Forth section arm	length	9670mm
		corner	235°
	Fifth section arm	length	10065mm
		corner	215°
	Turntable rotation angle		±360°
	Expansion width of front outriggers		9300mm
	Rear outrigger expansion width		9620mm
Pumping system parameters	Theoretical displacement of concrete	low pressure	170m3/h
		high pressure	120m3/h
	Theoretical pumping pressure	low pressure	8.3 MPa
		high pressure	12MPa
	Theoretical pumping times	low pressure	29times/minute
		high pressure	19times/minute
	Conveying cylinder inner diameter		260mm
	Conveying cylinder stroke		1900mm
	Hydraulic system		Open mode
	System oil pressure		32 MPa
	Fuel tank capacity		680 L
	Water tank volume		620 L
	Conveying pipe diameter		125mm
	End hose length		3m
	End hose diameter		125mm
Chassis parameters	Chassis model		CYZ51Q
	engine model		6WF1A
	Engine power		265kW/1800rpm
	Emission Standards		EURO 3
	fuel tank volume		380 L
	Displacement		14.256 L
	Maximum speed		80km/h
	Braking distance		≤ 10m/30km/h

Note: The model parameter configuration and other information on this page are for reference only. The actual model parameter configuration and other information are subject to in-store sales. The right of interpretation belongs to the manufacturer.

Detailed Photos


Company Profile

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.

---
