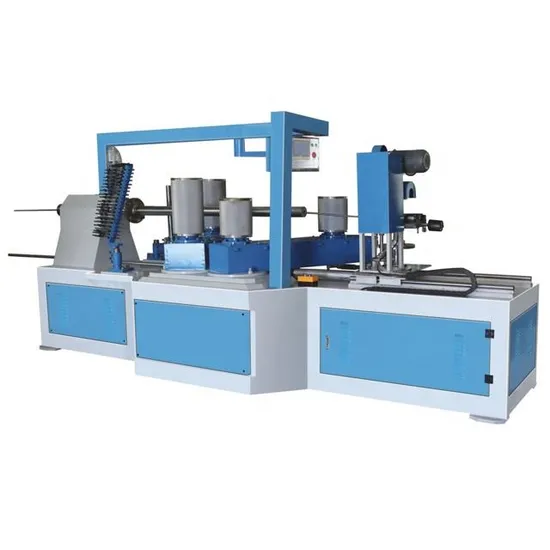

Automatic Spiral Paper Tubes Cores Making Winding Forming Machines Price Paper Tube Core Machine China Cfjg-100

Product Description

Product Description CFJG-100 Medium size tube & core making machine is suitable for Adhesive tape cores; textile cores; Stretch Film Cores and other industrial paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.

Technical Parameters

Technical Parameter		Control System
Paper Layer	3-16 Layers	PLC	Xinjie
Inner Diameter	20-200mm	Man-machine Interface	Touch Screen (Xinjie)
Wall Thickness	1-10mm	Inverter	15KW Delta (Taiwan)
Winding Speed	0-20 meters/min	Execute Components	CHNT
Winding Nose	Four noses two belts	Signal Components	Hugong
Shaft Fixing Way	Flange	Pneumatic Components	Jingwei
Cutting System	Single Circular Blade	Electric Components	CHNT
Gluing Way	Single / Double (can be chose)	Configuration
Length fixing	Infrared	Paper Reel Stand	16 Layers Integral Type
Operator	2-3 persons	Gluing System	16 Layers Spraying Type
Speed Control	By Inverter	Inner Paper Shelf	1 Set
Power Supply	380V/3Phase/50Hz (can be customized)
		Discharging Shelf	1 Set
Size		Belt	2 Pieces
Mainframe	4100*1650*1800mm	Mandrel Shaft	2 Pieces
Working Space	11000*7000mm	Belt Adjusting	Manual
Weight	4000kgs	Paper Reel Stand & Gluing Shelf Adjusting	Manual
Driving System
Main Motor	7.5KW Wannan	Automatically Gluing	Gluing Pump 1.5kw
Motor Rotating Speed	1400r/min	Lubricating Oil for Paper Tape	Automatically Supply
Nose Rotating Speed	48r/min
Nose Output Strength	3000N.m	Enclosed Spare Parts
Reduction Box	WPO155	Extra Blades	3 Pieces
Gear Box	WPO155	Useful Tool	1 Set
Driving Chain	16A*2

Pictures
Winding Part (four head 2 belts) ; Parameters can be set on the operating panel
Inline Cutting System (Cutting length from 500mm to 5000mm; error < 2mm)

16 Layers Integral Type Paper Reel Stand
16 Layer Spraying Type Glue Unit

Finished Products
