Auto Foundry Casting Clay Rotor Sand Mixer Machine Green Sand Mixing Equipment

Product Description

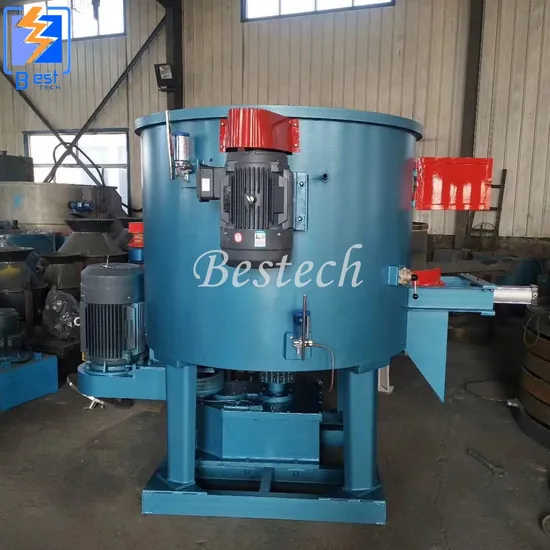

Foundry Green Sand Mixer Machine Description
The rotor sand mixing machine has scrapers and two high-speed rotors with a blade were installed in the machine's chassis. chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtains different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.
Features of rotor sand mixer:
The High Efficiency Sand Mixer low-speed scraper with the best combination of rotor speed, sand volume, mixing ability, good overall performance sand.
The High Efficiency Sand Mixer diabase cast stone, tungsten carbide surfacing, 2 fillers and other new materials, greatly improving the life of wearing parts
The High Efficiency Sand Mixer hydraulic coupling, steel gears, lubricating controlled machine to ensure smooth and reliable transmission system, and can load start.
The High Efficiency Sand Mixer latest rotary discharge door open and flexible, reliable and completely solved the problem of sand at the bottom drain.
Thee High Efficiency Sand Mixer symmetric access door opened very convenient for maintenance and cleaning.
The High Efficiency Sand Mixer easy to use and install steel base.
Technical Parameter of Rotor Sand Mixer

Type	Plate diameter(mm)	Plus the material(kg/s)	Productivity (t/h)	Installed power(kw)	ApproximateWeight(kg)
S1408	800	150	4	7.4	800
S1410A	1000	200	5	8.3	1000
S1412	1200	330	8	11.5	1200
S1416A	1600	660	16	19	2400
S1418	1820	800	18-20	30.55	2800
S1420J	2000	1000	25-30	44	6500
S1420D	2000	1200-1400	35-42	74.55	7000
S1420T-B	2000	1600	40-48	90.5	9000
S1422	2240	1600	40-48	99.55	10000
S1422D	2240	1900	47-55	135.55	11000
S1425	2500	2200-3000	66-90	135	15000
S1425D	2500	2300-3000	69-90	164	15000
S1425E	2500	1300-3000	69-90	164	16500

Packing and Shipping
Q: How many days do you need to produce this foundry rotor sand mixer?
A: It depends on the size of the machine. Usually 20-30days for shot blasting machine and sand casting machine.45 days for production line equipments.
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly. For the smaller machine we will install the machine at our workshop to make sure it can work well. For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.

---
