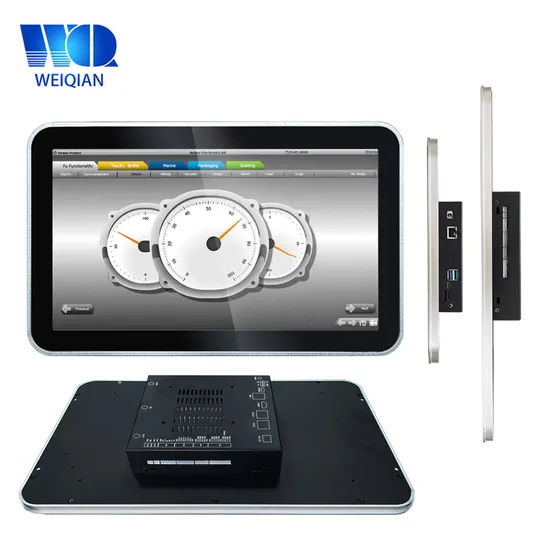

Industrial Touch Screen Panel Computer Rk3566 Rk3568 Rk3399 Android12.0 with 10.1inch 15.6 Inch Tablet PC

Product Description

industrial TOUCH screen Panel computer RK3566 RK3568 RK3399 Android12.0 with 10.1inch 15.6 inch tablet PC

1. Parameter

Product model	WAR-156C-RMS0
Basic parameters	CPU:Quad-core Cortex-A55,Frequency2.0GHz GPU: Mali-G52 Memory:2GB DDR4 (4G as option) EMMC:16GB EMMC(Up to 32G)
Display screen	Size :15.6 inch Resolution :1080 x1920 Wide-temperature,2070k colors or 24-bit true colors LED backlight:lifetime>25000 hours
Touch screen	Capacitive touchscreen
Hardware interface	4 channel 3 wire RS-232 serial port(COM1,COM2,COM3,COM7) 2 channel RS-485 interface (COM8,COM9). 1 channel TYPE-C interface ,support ADB connect to PC to exchange date and debug application . 2 channel USB Host interface ,support usual USB device such as mouse, keyboard, U disk, etc. 1 channel 1000M Ethernet interface (The second network port is optional) 1 channel SD/MMC interface ,support SD card and MMC card 1 channel external power amplifier interface (4Ω3W) 3 channel CAN Bus interface (optional) 1 channel SPI interface (optional) 1 channel MIC interface (optional) 1 channel HDMI interface (optional) 1 channel DC12V power input interface Built-in 4G(GPS),BT,WIFI (optional) .
OS	Android12
Defend degree	IP65(front panel)
Working environment	Power :DC 12V /3A Working temperature:-10~50ºC Storage temperature:-20~60ºC Working humidity:10~90%RH
specification	Shell structure:front plastic+back metal Panel size:395.5x244.8x45(mm)
Application area	industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support	Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . Easy change the user-defined splash screen.

2.Interface definiton
2.1 RS-232 interface
4 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding port in Android system is COM1,COM2,COM3,COM7.

2.2 RS-485 interface The corresponding port in Android system is COM8,COM9.
3.Exterior size
Exterior :395.5x244.8x45 (mm)
Company Profile
FAQ Q: What kind of all-in-one industrial panel pc do you manufacture? A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .Q: What is the main size for your panel pc and industrial monitor? A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.Q: Does this industrial panel pc support secondary development? A: Weiqian's industrial panel pc can support secondary development.Q: What industry is your industrial panel pc applied in? A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ? A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.Q: Whether your industrial panel pc support the OEM / ODM? A: Weiqian 's industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.Q: What is your warranty period? A: 1 Year warranty period & Lifetime technical support.

---
