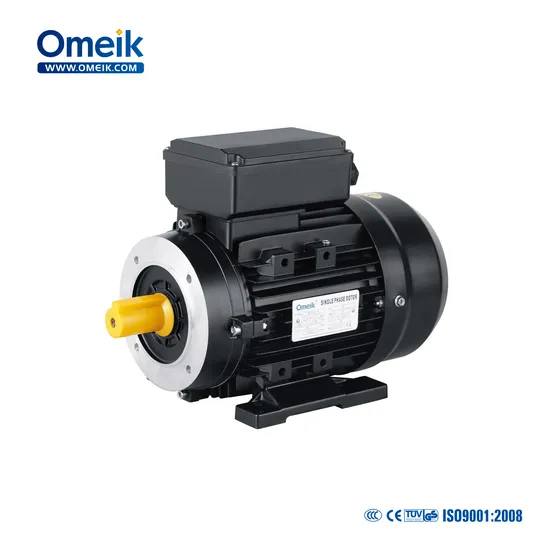

My Capacitor Running Induction Electric Motor

Product Description

MY Series electrical induction Motor
Advantage:
1. Safety & reliable operation
2. Nice appearance
3. Low noises
4. Little vibration
5. Light weight
6. Simple construction.
Appliation:
MY series Hydraulic motors can be used on household appliance, pumps, fan and recording meters, etc.
Operating Conditions:
1. Ambient temperature: -15 º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.

TYPE	Output		Voltage	Current	Speed	Eff	Power	Tstart/Tn	Ist/In
	KW	HP	(V)	(A)	(r. p. m)	(%)	factor
MY561-2	0.09	0.12	220	0.9	2730	54	0.9	0.85	4.5	1.7
MY562-2	0.12	0.16	220	0.97	2730	58	0.9	0.85	4.5	1.7
MY631-2	0.18	0.25	220	1.8	2740	63	0.9	0.8	4.5	1.7
MY632-2	0.25	0.33	220	2.16	2740	65	0.9	0.8	4.5	1.7
MY711-2	0.37	0.5	220	2.96	2750	68	0.95	0.8	4.5	1.7
MY712-2	0.55	0.75	220	4.15	2760	69	0.95	0.8	4.5	1.7
MY801-2	0.75	1	220	5.17	2780	70	0.95	0.7	4.5	1.7
MY802-2	1.1	1.5	220	7.26	2790	71	0.95	0.7	4.5	1.7
MY90S-2	1.5	2	220	9.67	2800	72	0.95	0.6	5	1.7
MY90L-2	2.2	3	220	14.1	2800	73	0.95	0.6	5	1.7
MY5614	0.06	0.08	220	0.68	1330	48	0.85	0.85	4.5	1.7
MY5624	0.09	0.12	220	0.99	1340	49	0.85	0.85	4.5	1.7
MY6314	0.12	0.16	220	1.22	1350	53	0.9	0.8	4.5	1.7
MY6324	0.18	0.25	220	1.75	1360	57	0.9	0.8	4.5	1.7
MY7114	0.25	0.33	220	2.2	1370	59	0.95	0.8	4.5	1.7
MY7124	0.37	0.5	220	3.12	1370	62	0.95	0.8	4.5	1.7
MY8014	0.55	0.75	220	4.2	1380	65	0.95	0.7	4.5	1.7
MY8024	0.75	1	220	5.8	1380	68	0.95	0.7	4.5	1.7
MY90S-4	1.1	1.5	220	7.6	1390	69	0.95	0.6	5	1.8
MY90L-4	1.5	2	220	10.2	1400	70	0.95	0.6	5	1.8

SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply

---
