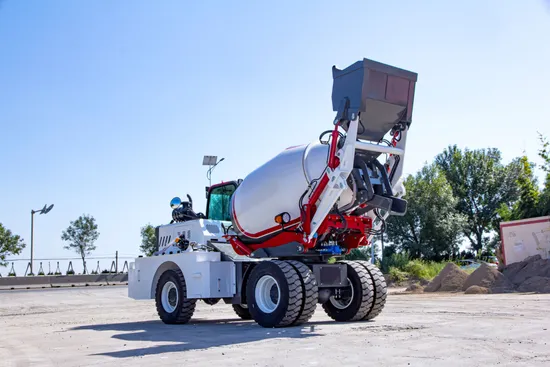

New Arrivalconcrete Mixer Diesel Auto-Feeding Concrete Drum Mixer

Product Description

Product Description4.0Cubic Meters Cement Mixer Truck
HR self-loading concrete mixer is a device that integrates the functions of existing concrete transport trucks and mixing stations. It can automatically supply, meter, mix and unload concrete mixture.
1.4*4 vacuum high-pressure tires: pressure resistance is 5 times that of ordinary tires, high safety, extended service life,
2. Radiator: Two radiators dissipate heat for the mixing tank and engine. The internationally advanced plate independent cooling system is used to ensure oil filter quality and temperature control.
3. Hydraulic system: open oil inlet, plunger motor, two gear pumps participate in the work
4. Joystick: Two hydraulic pilot levers control the bucket, boom, 270° rotation, and tank lifting
5. Bucket: Hydraulic automatic gate
6. Water supply system: self-priming drive water pump, 24V self-timed centrifugal pump, car washing machine
7. Brake: Use a small servo pump on an independent dual circuit to activate, and use a single wheel with 4 pistons to enlarge the double brake calipers.
8.Q345 manganese steel frame: strong load-bearing capacity and high safety
9. Driving images: avoid blind spots on one side of the tank
10. Air conditioner
11. Electronic scale: Strictly control the weight and proportion of raw materials
12.Luxurious cab: Comfortable operation. In order to create a very good and comfortable operating experience when working, every detail has been carefully designed.
13. Cement hopper engine optional.
15. Front and rear bi-directional drive, the drum can rotate 270° at the same time
The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.
The vehicle is four-wheel drive, which enables the mixer to produce concrete under harsh working conditions and ensures work efficiency.
The aggregates are weighed during the loading process to ensure that the required concrete is produced, improve production efficiency, and the weighing accuracy is within 3%.
Only one operator is required to drive, load and mix the raw materials during the movement. The self-loading mixer is easy to operate, has high work efficiency and good mixing effect.
It has an independent water supply system to ensure the high quality of concrete.
The body of the mixer truck is of sufficient quality, the pipelines are protected when climbing without rollover, the temperature is adapted to the fine grain of the tank, the alloy is very durable, the body has dual tires, and it can bear loads in a vacuum.
A mixer truck is equivalent to a loader, a mixer, a transporter and more than 6 workers. It has automatic feeding, water supply, mixing, accurate electronic scales, intelligent batching calculation system, large-capacity water tank and water injection system. The body is equipped with a Yuchai engine. Four cubic meters of concrete can be produced in 12 minutes.
The work environment is not limited to any location, and it can be used with confidence in cities, rural areas, mountainous areas, and plateaus. The production quality of regular manufacturers is guaranteed, and you can easily get a license plate and hit the road immediately.
"With its high-level automated production technology, it can do automatic feeding, automatic water addition, automatic mixing, automatic rotation and unloading, etc. There is no need to worry about ingredients. The mixer truck has its own ingredients function.
Electronic scales and batching systems cooperate with each other to strictly control the weight and proportion of raw materials."
Product Parameters

Overall Parameter
Model	HR6500L
Dimension (L×W×H)	7150*2640*4330(lifting arm)8580*2640*3330(drop arm)
Weight	11000 kg
Performance
Mixing Drum Capacity	Drum Capacity 6500L,Concrete Output: 4.0m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1000L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	315 separated type
Drive axle	2.5T wheel side decelerationbridge
Tires	16/70-R22.5 double tires
Bucket capacity(m3)	0.65
Mixing capacity(m3)	≥3.8
Reduction ratio	1:28
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 6105 supercharged
Manufacturer	YUCHAI
Rated Power	92kw
Emission standards	Euro II
