C6136/C6140/C6150/C6166/C6132 Horizontal Metal Turning Manual Lathe Machine

Product Description

Product Description

The C6136D series manual horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotating surfaces, turning various metric, inch, modulus, and diametral pitch threads, and can perform drilling and oil groove pulling work. It is a highly versatile horizontal lathe and is widely used for batch processing of various shaft and disc parts.
Features: 1. The main spindle box of the machine tool is manually scraped and ground between the joint surfaces of the bed, tailstock, and support plate. The entire machine has undergone strict testing, effectively ensuring the accuracy and stability of the machine tool.
2. The machine tool is made of high-strength cast iron with the addition of copper and chromium special materials. The width of the bed guide rail is 312mm, and the quenching depth of the bed guide rail reaches 3mm, effectively improving the wear resistance and stability of the machine tool.
3. The lubrication of the machine tool spindle box adopts a cycloidal pump for cyclic forced lubrication, ensuring the cleanliness and heat dissipation characteristics of the spindle box, and effectively extending the service life of bearings and gears. 4.The machine tool gears are precision ground, effectively improving the gear hardness and reducing the machine tool noise.
Product Parameters

Item	C6136
Max. Swing over bed	360mm
Max. swing over carriage	200mm
Max. Length of work piece	750/1000mm
Width of bed	312mm
Section of turning tool	20 x 20
Spindle speed step	12 grade (Forward, Reverse)
Range of spindle speed	30-1600r/min
Hole through spindle	52mm
Spindle taper	MT6
Spindle nose	ISO(GB)C6
Number of feeds	(0.039-1.05mm) ,(0.019-0.52)44 kinds
Range of metric threads(kinds)	0.5-20mm (25kinds)
Range of inch threads(kinds)	(80-1.75tpi) 35kinds
Range of module threads(kinds)	0.25-10( 24 kinds)
Range of pitch threads(kinds)	160-3.5DP(30 kinds)
Tailstock sleeve travel	100mm
Tailstock sleeve diameter	Φ60mm
Taper of Tailstock spindle center hole	NO.4 (MT4)
Main motor	3/4KW
Packing Dimension	1940/2180x 970x 1250mm
Net /Gross weight	1350/1550KG

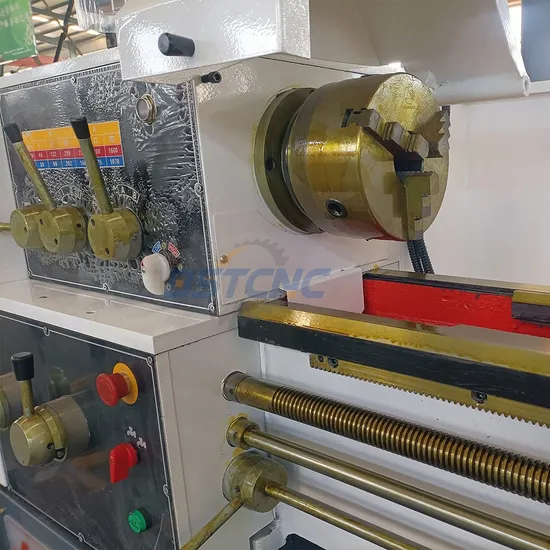

Detailed Photos
