US$98,000.00
|
1 Unit
(MOQ)
|
Basic Info.
Usage
Marine Excavator, Mining Excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Maximum Digging Height
10379mm
Maximum Digging Depth
6893mm
Max Digging Radius
6893mm
Transport Package
Comply with Export Packaging Requirements
Specification
11388*3390*3570mm
Production Capacity
50000units/Year
Product Description
Product Description

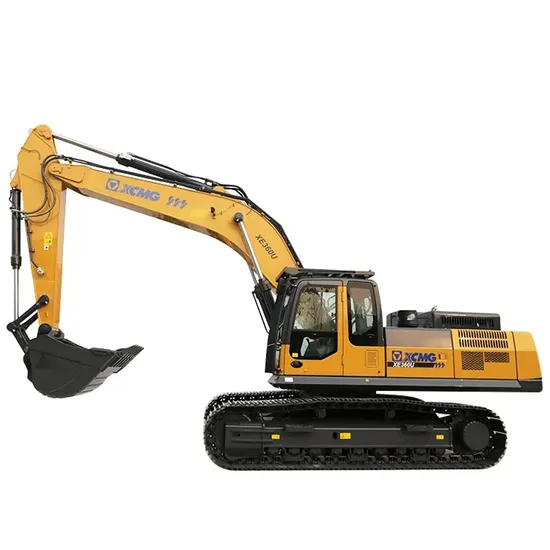

XE360U is the most popular model of China 36t excavator, now XE360U is upgrading to new model XE360D equipped with EURO III engine with electric injector, new model will have high performance.
High-pressure common rail EFI engine that meets North American EPA Tier4F emissions achieves optimal fuel injection control, improves combustion efficiency, and is more energy efficient and environmentally friendly.
Equipped with a new large diameter multi-way control valve, the Crawler Excavator XE360U is quick and efficient; Valve element is further optimized to reduce internal pressure loss of the channel, improve maneuverability and efficiency of the composite operation.
Intelligent electronic control system can achieve optimal matching control of engine speed and hydraulic pump, and dynamic balance of power and hydraulic system. With remote fault diagnosis function, operation process will be recorded at any time.
High-performance silicone oil shock absorber with internal damping spring will effectively isolate shock waves in specific frequency bands for improved comfort.
Product Parameters
| Sales model | XE360U |
| Operating weight | 36800Kg |
| Bucket capacity | 1.6m³ |
| Model | QSL9 |
| Rated power | 213/2000kw/rpm |
| Maximum torque/speed | 1400/1451N.m/rpm |
| Displacement | 8.9L |
| Travel speed | 5.4/3.2km/h |
| Swing speed | 9.7r/min |
| Gradeability | 35° |
| Ground pressure | 66.7kPa |
| Bucket digging force | 263kN |
| Arm digging force | 183kN |
| Maximum tractive force | 285kN |
| Overall length | 11388mm |
| Overall width | 3390mm |
| Overall height | 3570mm |
| Width of platform | 3200mm |
| Track length | 5035mm |
| Overall width of chassis | 3390mm |
| Track width | 800mm |
| Wheel base of crawler | 4040mm |
| Track gauge | 2590mm |
| Counterweight clearance | 1197mm |
| Min. ground clearance | 500mm |
| Min. tail swing radius | 3700mm |
| Track height | 1115mm |
| Max. digging height | 10445mm |
| Max. dumping height | 7287mm |
| Max. digging depth | 7423mm |
| Maximum depth cut for 2240mm(8 ft) level bottom | 7266mm |
| Max. vertical wall digging depth | 6776mm |
| Max. digging radius | 11114mm |
| Min. swing radius | 4369mm |
