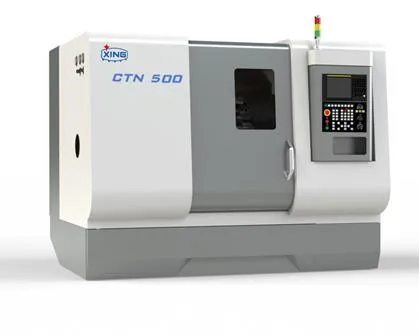

CNC Lathe Machine, Turning Center with Y Aixs

US$21,000.00
1-4 set
US$20,500.00
5-9 set
US$20,000.00
10+ set

Basic Info.

Model NO.
CTN500
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
ISO 9001
Condition
New
Net Weight
4000kg
Maximum Machining Length
600
Y Axis Stroke
120mm
X/Z Axis Linear Guide
Roller Linear Guide
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
2550*1850*2000
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000

Product Description



item specification
1 Max. swing dia. over bed 650mm
2 Max. turning dia. of workpiece 360mm
3 Distance between centers 600mm
4 Bed form step-wise
5 Middle pallet 30°
6 Max.X stroke 240mm
7 Max.Z stroke 650mm
8 Rapid feed X/Z 18/36m/min
9 X/Z motor speed 3000RPM
10 Z axis linear guide width 45mm( roller style)
11 Ball screw X/Z 3206/4012
12 Spindle speed 100-4000RPM
13 Spindle nose A2-6
14 Spindle bore 66mm
15 Power of main motor 7.5KW
16 Spindle clamp 8 inch hydraulic chuck
17 Chuck bore 55mm
18 Tool holder Hydraulic Turret(taiwan)/servo turrret/servo power turret
19 Number of tool holders 12
20 Standard blade size 25×25mm
21 Maximum boring tool diameter 40mm
22 Tailstock stroke 590mm
23 Tailstock diameter 110mm
25 Tailstock taper MT5
26 positioning accuracy X/Z 0.019/0.029mm
27 repositioning accuracy X/Z 0.005/0.005mm
28 Overall dimensions of machine 2550x2100x1850mm
29 Case dimensions of machine 2650x2250x2280mm
30 Net weight /gross weight of the machine 4000/4300kg

1. In the design stage, FEA technology is used to simulate and analyze changes under various working conditions, realistic complexity and high rigidity design;
2. The class type 30° inclined bed is used to increase the bottom area, maximize the rigidity of the machine tool, and improve the comprehensive cutting performance.
3. The X axis of the structure adopts high rigidity roller guide rails to improve vibration damping and dynamic rigidity;
4. Z-axis adopts 45 large specifications and high rigidity roller guide rails to improve machine stability and dynamic response;
