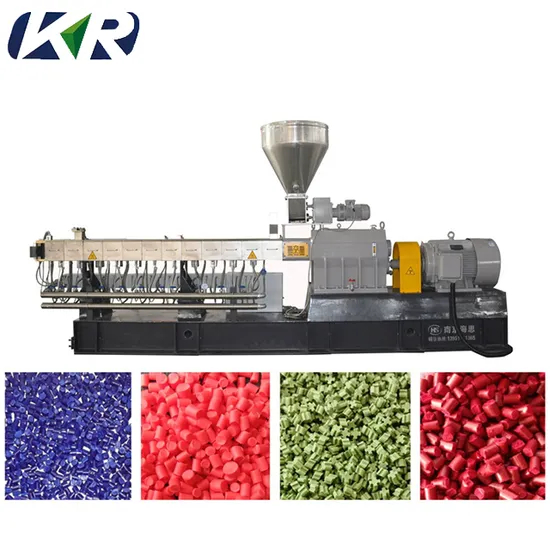

Tse-65 HDPE Granule Pelletizer Machine for Color Masterbatch

Product Description

Co-rotating parallel color masterbatch extruder
Haisi extrusion provides advanced pelletizing line for all kinds of color masterbatch.
We design the color masterbatch extruder according to the output, formula and final application as your request.
Applications of our color masterbatch extruder:
Color MB is used for any polymer and all kinds of product.
Better dispersion and higher output
For TiO2 white masterbatch, carbon black masterbatch and color masterbatch making.
Simple machine operation
Long lifetime of screw and barrel parts
Fast color changes
Base polymers: PE, PP, PS, EVA, PET, PA, PC, PMMA, ABS, TPE, POM, PEEK, etc.
Technical parameter of color masterbatch extruder:

Mode	Diameter(mm)	L/D	speed(r/min)	Motor power(kw)	Torque(N.m)	Capacity(kg/h)
TSE-40B	41	32-52	600	35	437	90-150
TSE-50B	50.5	32-52	500	55	430	180-270
TSE-65B	62.4	32-64	600	90	716	250-360
TSE-75B	71	32-64	600	132	1050	350-500

Premixing of color masterbatch extruder:
In the premix process, all masterbatch raw material components are first mixed in a mixer. Then, normally via a volumetric feeder, this mixture is fed into the twin screw extruder where it is processed.
Also you can choose loss-in-weight feeder for more precise and gentle feeding.
1.Water strand pelletizing line for color masterbatch extruder
It is the most commonly used and economic method for color masterbatch making.
Application:
Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other processing aids.
Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
2. Water Ring pelletizing line for color masterbatch extruder
Water ring granulation can be applied to formulations with large differences in melt characteristics. On the other hand, the water ring cutting have a shorter residence time in the water, and the moisture content after the dehyddrator and the vibrating screen is less than 0.1%, and no additional drying is required.
Application:
PE, EVA etc. Filled with CACO3,talc,TIO2,carbon black etc.
Color concentrations of PE,ABS, PS,EVA,etc;
Flame retardant master batches of ABS,PS,EVA,etc;
Master batches with PE,PP,PS,etc carriers for degradation applications.
3. Underwater pelletizing line for color masterbatch extruder:
For more output: the strands go into the pelletizer automatically by the water flow, even the strands break during changing the filter. So there will be almost no waste during the manufacturing process.
Underwater pelletizing system also used to handle micro pellets making with a size of ≤ 1mm.
Characteristics of color masterbatch extruder:
*TSE series color masterbatch extruder use innovated design of heater tightened style, it insures high efficiency of heat transfer and high longevity of heater.
*TSE series color masterbatch extruder has various modes of pelletizing, such as water-cooling strand machine, air-cooling pelletizing machine, water-ring pelletizing machine, under water pelletizing machine etc.
*The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high functions.
*The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.

---
