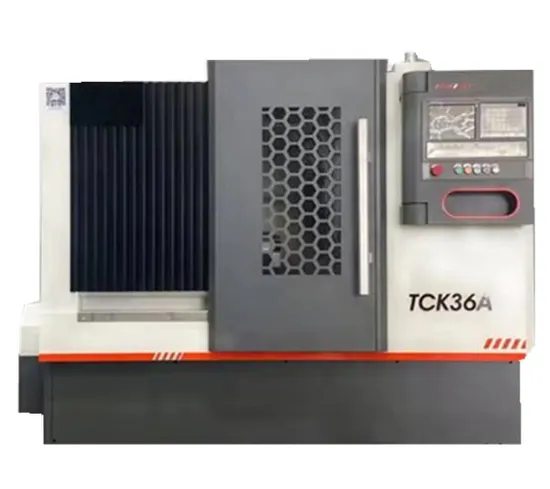

Chinese Factory Slant Bed CNC Cutting Turning Machining Lathe Tck36A

Product Description

Product Description
CNC Lathe Features
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A1.45 degree slant bed cnc lathe2.High accuracy Taiwan linear guideways3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.5.The first one is suitable for bearing and gear processing .6.The second type is suitable for high speed and jhigh precision processing.7.Customers could choose any type of them8.Screw pre-stretching structure9.Gang type tool post10.Optional turret
CNC Lathe Technical Parameter:

Specifications	Unit	TCK36A	TCK50A	TCK56A	TCK66A
Max.swing dia. over bed	mm	360	560	560	660
Max.swing dia. over slide	mm	140	260	300	400
Max.processing length	mm	300	350/500/800	500/1000	700
Max.bar capacity	mm	41	55/75	50	75
Max processing diameter of plate type work piece	mm	360	400/320	360	500
Spindle nose	GB59001	A2-5	A2-6/8	A2-6	A2-8
Diameter of spindle through hole	Φ/mm	48	66/66/86	65	85
Spindle speed range	r/min	50-4000	0-3000	50-4000	0-2800
Spindle shift mode		Stepless speed changes	Stepless speed changes	Stepless speed changes	Stepless speed changes
Motor power of spindle	KW	5.5	11/11/15	11	11/15
Chuck type		Hydraulic chuck	Hydraulic chuck	Hydraulic chuck	Hydraulic chuck
Chuck size	Inch	6	10″/12″	8	10
X axis rapid traverse	m/min	24	24	24	24
Z axis rapid traverse	m/min	24	24	24	24
X axis servo motor torque	N.m	6	7.5/10	10	10
Z axis servo motor torque	N.m	6	7.5/10	10	10
X axis travel	mm	170	240	200	260
Z axis travel	mm	350	400/540/900	550/1050	800
Guide way type		Linear guide	Linear guide	Linear guide way	Linear guide way
Tool post type		Horozontal 8 station	Horozontal 8/12 station	Horozonta l8/12 station	Horozonta l8/12 station
Tool shank size(square cutting tool/boring cutting tool)	mm	20*20/Φ25	25*25/Φ32	25*25/Φ32	25*25/Φ32
Tail stock type		Hydraulic	Hydraulic	Hydraulic tail stock	Hydraulic tail stock
Tail stock quill dia	Φ/mm	65	70/88	74	100
Tail stock quill travel	mm	70	80	450	700
Tail stock quill taper		MT4#	MT5#	MT5#	MT5#
Total rated power	KW	9	14/18	18	18
Total rated current	A	19	30	38	38
Net weight	kg	2400	3200/3600/4500	4250	5000
Machine dimension(L*W*H)	(mm)	2200*1600*1850	2700/2700/3300*2000*2000	2950/3450*1860*1850	3700*2000*2000

Our Advantages



FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
