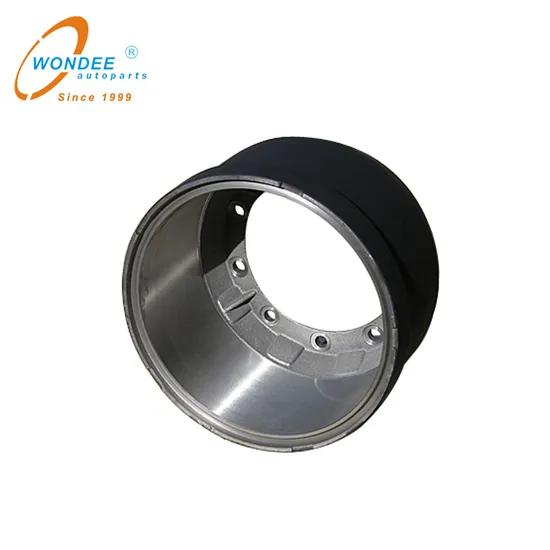

Heavy Duty OEM Truck and Trailer Rear Brake Drums for Semi Trailer Parts

Product Description

1. On Wondee Brake drum Since 1999
2. 20 years experience on Bogie suspension components
3. 1 year Quality warranty
4. ISO, TS16949 Certificate
5. 7x16 hours service
6. Customized ODM OEM Bogie suspension available
7. 4 Global Offices
WONDEE Supply different types of Brake drum according to your part number and OEM number:
WONDEE Brake Drum Information:
1. Metertrial:gray iron HT250/GG25=heavy truck brake drum
2. Weight:20kg-85kg
3. Chermical composition:
C:3.0-3.3% Si:1.6-1.9% Mn:0.7-0.9% P:<0.12% S<0.12%
4. Mechanics performance:
Main body degree of hardness:163-255HBS
Testing rod tensile strength:>=220mpa
5.Design:
OEM and ODM , As per the customers drawings or Samples
6.Packing
Wood pallet & Waterproof membrane ,As per the customers requirements.
Main part number of Brake drums:
Middle east and euro market: 3054230401,3464230501,3464230601,0310667290,0310667560,0310677630,1599012 etc
North America market :3600AX ,2983C ,3721AX ,3800X ,68765,67518,66893,66864,62200 etc
East south Asia market : 43512-1710,43512-4690,43512-5000,42431-37080,42431-36190,MC807783,MC895621 etc
Russia market :53205-3501070,64221-3502070,5336-3501070,677-3501070,6430-3501070,9397-3501070 etc
South Africa market : TD0403, TD0334,TD0629,TD0103,TD0119,TD0575,TD0630,etc
China truck : yutong 3501-00076,35XZB-02075 HOWO WG9231342006, 99112340006. etc

Brake drum for: Mercedes-Benz,BPW,Volvo,Scania,SAF,HOWO,ROR,MAN,MAZ,KAMAZ,TOYOTA,HINO,NISSAN,IVECO,GUNITE,WEBB.etc.
Also , We produce the brake drum according to the sample and drawing.
What is the Brake drum:
The brake drum is a type of cast iron shaped like a tambourine, which is fixed with the tire and rotates at the same speed. When braking, apply oil pressure to push the brake shoes to contact the brake drum inner rim, we can control the rotation of the wheel to achieve the purpose of braking by the friction force comes from contact.
We are manufacturer specializing in all typical brake drums for trucks and automobile,such as / / MERCEDES / / RENAULT / / MAN/ STYER HOWO / / KAESSB OHRER / KESSLER / MAZ / SAUER SAF / ROR / TRAILER / GUNTE WEBB / KIC / FUWA / NIHO / / JAPAN / FOSO / / FRUEHAUF...Our manufacturing is operated strict quality control systems and we have many years of production experience. Please send the drawing or other information, and then we will make a detailed reply. If you are interested in our products, please let me know, we will offer best service and appropriate price.
WONDEE Brake drum Parameter:

Model:	OEM NO	Overall Depth (A)	Bolt Hole Diameter(1st) (B)	Bolt Circle Diameter (C)	Pilot Diameter (P)	Durm Weight (W)	Brake Surface Diameter (D)
BPW	310677630	296	10 HOLE ∮23	335	290	225	420
	310677040	275	10 HOLE ∮23	335	290	214	420
	1134502	252	10 HOLE ∮23	335	290	200	420
	310677590	297	10 HOLE ∮23	335	290	225	420
	1064010901	304	10 HOLE ∮23	335	290	210	420
BENZ	3054230401	306	10-∮23 / 5-∮24	335	298	239	410
	3464230501	281	10-∮23 / 5-∮24	335	298	193	410
	6584210001	238	10-∮23	335	298	194	410
	6174230101	300	10-∮23 / 5-∮24	335	298	192	410
	3354210301	190	12-∮15.5	400	373	160	430
HINO	43512-1710	241	10-∮22.5 / 8-∮22.5	285	205	211	406
	43512-1150	276	8-∮22.5	285	205	228	406
	43512-2230/1750	199/185	8-∮22.6	285	220/230	131.5/138	400/406.5
	43512-2450	254	∮22.5	285	205	225	406
	40206-90218	191	8-∮22.5	285	240	164	410
	H-97108	233	10-∮32	285.75	220	117	381
AMERICAN	3600A	270	10-∮23.8	285.75	223	195	419
	16290	270	10-∮23.8	285.75	223	195	419
	H-97102	268	10-∮25.4	285.75	223	193	419
	2983C	208	5-∮20 / 5-∮17	279.4	239.7	187.9	419
	3721AX	233	10-∮32	285.75	220	117	381
VOLVO	1599678	281	10-∮28	335	282	183	410
	1414152	263	10-∮23.5	335	295	189	413
	360572	247	10-∮23.5	335	295	216	413
	1064026001	227	10-∮23	335	300	196	420
	21220813	250	10-∮24.5	335	282.6	188	419
	3171743	285	10-∮28	335	282	186	410
	A1561800	219	10-∮26	335	288	194	419.5
Remark: Other type brake drum can be produced: MERCEDES BENZ, TOYOTA, IVECO, MAN, SCANIA, ISUZU, DAF, SAF, ROR, FRUEHAUF, RENAULT, BERLIET, YORK, RABA, STEYR, FIAT, SISU, GORICA, TERBERG, ROCKWELL, LIAZ, NEOPLAN.

Besides Brake drum , WONDEE also Supply:

Semi-trailers:
Skeletal semi-trailers	flatbed semi-trailers	container semi-trailers	low bed semi-trailers
van semi-trailers	fuel tank semi-trailers	logging semi-trailers	Fence Semi trailers
Spare Parts:
Leaf spring,	flat bar,	Chassis,	H-beam
Air suspension,	mechanic suspension,	bogie	Coupling,
Axle	air chamber,	slack adjuster	hitch.
Brake drum	brake shoe	brake lining	wheel hub
tubeless wheel rims,	tube wheel rims,	Aluminum wheel rim	wheel bolt
u bolt	center bolt	hub bolt	twist lock,
Turntable,	5th wheel,	landing gear,	king pin,

---
