High Speed 0.5 1L 5 Liter Plastic Pet Handle Bottle Making Blowing Machine Price by CE

Product Description

High Speed 0.5/1L 5 Liter Plastic Pet Handle Bottle Making Blowing Machine Price by CE
The PET bottle blowing machine plastic bottle machine is suitable for the production of 0.1-2.0L plastic containers and round and square bottles.

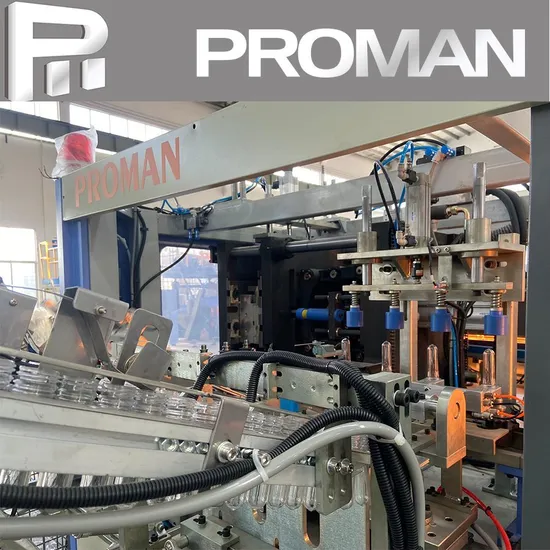

PM series pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine.
It has various cavities and the maximum capacity of the products is 20L.
It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. which is made of plastic of crystalline type, such as PET and PP etc.
Flow chart:
PET preform→Autoloader→Reheater →Molding→ Bottles Detail Photos:
Auto-loader:
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
Servo transmission system
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Infrared lamp heating system:
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Servo clamping and stretching system for bottle molding
Blow the bottles according to the designed bottle molds,it adopts servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.There are two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
Bottle Mold:

Model		K4	K6	K8	K12
Bottle type specification	Cavity	4	6	8	12
	Max.volume	2L	2L	2L	0.75L
	Bottle mouth maximum overall diameter	28-38mm	28-38mm	28-38mm	28-38mm
	Bottle biggest diameter	100mm	100mm	100mm	100mm
	Bottle maximum height	330mm	330mm	330mm	330mm
Capacity	Theory output	6000-8500BPH	9000-12000BPH	14000BPH	24000BPH
Power specification	Light tube quantity	16pcs	32pcs	32pcs	32pcs
	Light tube power	1.25KW	1.25KW	1.5KW	1.75kw
	Maximum heating power	20KW	40kw	48KW	56kw
	All electric machine installation	29KW	49kw	65KW	71kw
	Actual consumption	30%--60%	30%--60%	30%--60%	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2	5-6kg/cm2	5-6kg/cm2	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2	25-45kg/cm2	25-45kg/cm2	25-45kg/cm2
	Higher -pressure gas consumption	6000Ltr/min	8000Ltr/min	12000Ltr/min	24000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2
	Temperature range	10ºC	10ºC	10ºC	10ºC
	Consumption	8000kcal/hr	8000kcal/hr	12000kcal/hr	12000kcal/hr
	Forzen water flow	88L/min	120L/min	150L/min	220L/min
Machine specification	Machine size	3.6x1.6x1.9	4.8x1.8x1.9	5.8x1.6x1.9	7.6x1.6x1.9
	Machine weight	4.3tons	6.1tons	7.5tons	11.5tons

Certifications :
1.How to tell us your enquiry? You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.

2.Where is your factory? Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

3. Do you have any technical supports with your blow molding Machine? Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

4.What's your guarantee or the warranty of the quality if we buy your machines? We offer you high quality machines with 1 year guarantee and supply life-long technical support.
We Warmly Welcome Customers All Over The World To Our Company If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.

---
