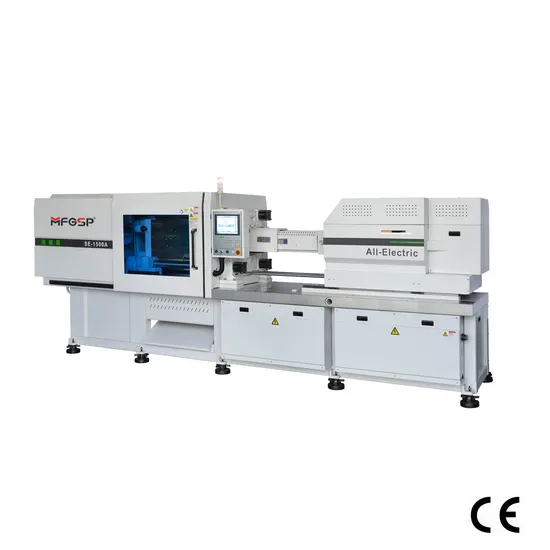

SE-1500V Energy-saving Efficiency Precision Eco-friendly Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-1500V
CLAMP TONNAGE		kN	1500
SPACE BETWEEN Tl E-BARS		mm	530x480
PLATEN DIMENSION		mm	750x710
OPEN STROKE		mm	420
MOULD THICKNESS		mm	200-550
EJECTOR STROKE		mm	100
EJECTOR FORCE		kN	29.4
EJECTOR NUMBER			5
MACHINEWEIGHT		T	7
SCREW DIAMETER		mm	30	34	38	36	40	45	40	45	50
INJECTION CAPACITY		cm3	92	118	147	173	214	270	232	294	363
INJECTION WEIGHT (PS]		g	84	107	134	157.5	194.4	246	212	268	331
PLASTICIZING CAPACITY (PS)		kg/h	42	61	82	71	91	123	91	123	150
SCREW SPEED		rpm	400			350			350
HEATER BAND			3+1			3+1			3+1
HE/JER POWER		kW	7.8			10.3			12.3
NOZZLE PRESSING FORCE		kN	19.6			29.4			29.4
STANDARD			240			450			570
INJECTION SPEED		mm / s	200			200			200
INJETION RATE (PS)		cm3 /s	141	182	227	204	251	318	252	318	393
INJECTION PRESSURE		Mpa	252	196	157	258	210	165	265	210	170
		kgf/cm2	2569	2000	1601	2636	2135	1687	2700	2135	1730
MAX.INJECTION HOLD PRESSURE		Mpa	202	157	126	207	167	132	213	168	136
		kgf/cm2	2055	1600	1281	2109	1708	1345	2169	1714	1388
TOTAL POWER		kW	28.2			40.3			42.3
OPTION			240H			450H			570H
INJECTION SPEED		mm / s	350			350			350
INJETION RATE (PS)		cm3 /s	247	318	397	357	440	557	441	557	688
INJECTION PRESSURE		Mpa	252	196	157	258	210	165	265	210	170
		kgf/cm2	2569	2000	1601	2636	2135	1687	2700	2135	1730
MAX.INJECTION HOLD PRESSURE		Mpa	202	157	126	207	167	132	213	168	136
		kgf/cm2	2055	1600	1281	2109	1708	1345	2169	1714	1388
TOTAL POWER		kW	37.8			64.3			66.3
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
