High Quality Dual Band 3000Mbps LTE Router 5g Chipset CPE Industrial 5g Router

US$89.00-198.00 1 Piece (MOQ)

Basic Info.

Model NO.

HDRM200

Signal Type

Baseband Modem

Installation

Rack-Mounted

Clip Function

Mtk 7628

Interface Type

RJ-45

Transmission Rate

300Mbps

Application

Industrial, Enterprise, Household

Transport Protocols

FTP

Transmission Mode

Data Transfer

SIM Card Slot

Dual SIM Card Slots

Interface Ports

1wan/5LAN or 6LAN Ports, One Console Port,USB,RS23

WiFi

WiFi High Quality Performance Without Congestion

LTE EU Frequency Bands

LTE FDD. B2,4,5,17

Support

SD Card Storage

Network Mode

LTE ,WCDMA,EVDO,GPRS,GSM,CDMA 1X

Embeddedsystem

Linux or Openwrt

Working Temperature

-40~+75

Antenna

2*2 4G/WiFi MIMO Antenna

Highlight

1gbit LAN Port.Vlan

Transport Package

Carton Packing

Specification

Aluminum alloy

Trademark

Head Weblink

Origin

China

Production Capacity

100000set/ Month

Product Description

High Quality Dual Band 3000Mbps LTE Router 5g Chipset CPE Industrial 5g Router Product Description
• 3G/4G LTE data transmission;
• Support Wi-Fi 802.11 AC
• Active auto connect;
• Embedded watchdog , Auto recovery;
• Support protocols like DHCP,VPN(IPSEC,L2TP,PPTP, GRE,Open VPN),TR-069,SSH,DDNS.
• 2*2 4G/WIFI MIMO antennas, GPS high gain antenna;
• Integrate 3G/4G LTE,Wi-Fi,GPS feature;
• Support SD card storage.
• Wi-Fi High quality performance without congestion;

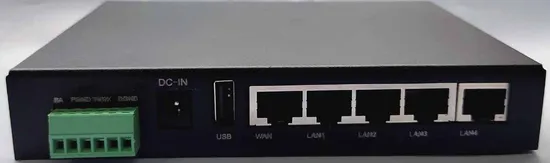

• 1WAN/5LAN or 6LAN ports, One console port,USB,RS232,GPIOs; • Provide one 1Gbit LAN port.
• Support VLAN feature.
• With dual SIM card slots;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt; Detailed Photos
Product Parameters

Frequency bands
2G Version	GSM/GPRS 850/900/1800/1900MHz
3G Version	WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz	EVDO 800MHz & 800/1900MHz
3G Version	GSM. 850/900/1800/1900MHz	EVDO 800MHz & 800/1900MHz
4G Version	Version A	LTE FDD. B2,4,5,17
	Version A	UMTS. 850/1900MHz
		LTE FDD. B1,3,7,8
	Version C	LTE TDD B38, B39, B40, B41
		UMTS. 900/2100MHz
		TD-SCDMA. 1880~1920MHz & 2010~2025MHz
		GSM. 900/1800MHz
	Version E	LTE FDD. B1,3,7,8,20
		LTE TDD B38, B40
		UMTS. 900/2100MHz
		GSM. 900/1800MHz
		LTE FDD. B1,B3,B8,B18,B19
	Version JC	LTE TDD. B41
		UMTS. B1,B6,B8
		GSM. 900/1800MHz
	Version JE	LTE FDD. B1,B8
		UMTS. B1,B8
		GSM. 900/1800MHz
		Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28
	Version SA	Tri-Band LTE-TDD B38/B40/B41
		Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
		Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8
Data rates
3G LTE router	WCDMA. DL 14.4Mbps, UL 5.76Mbps	EVDO. DL 3.1Mbps, UL 1.8Mbps
4G LTE router	FDD LTE. DL,100Mbps UL,50Mbps	Or
	TDD LTE. DL,50Mbps UL,25Mbps	LTE Category 4 - 150 Mbps (DL)
	WCDMA. DL 42Mbps UL5.76Mbps	LTE Category 4 - 50 Mbps (UL)
	TD-SCDMA. DL 2.8Mbps UL 2.2Mbps
