CE Certified Edge Bander for Efficient Woodworking Projects

Product Description

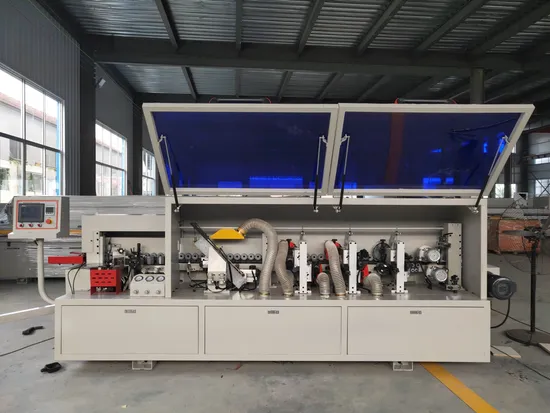

ZDseries STRAIGHT EDGE BANDING MACHINE
ZD600R Straight Edge Banding Machine
Six functions: gluing-end trimming-rough trimming-fine trimming-scraping-buffing
ZD500 Straight Edge Banding Machine
Five functions:gluing-end triming-fine trimming-scraping-buffing
ZD400 Straight Edge Banding Machine
Four functions:gluing-end triming-fine trimming/scraping-buffing
Specification:

ZD600R -SIX Functions: gluing end trimming rough trimming fine trimming scraping buffing	Working pressure: 0.7MPa Total power: 8.23kw Feeding speed: 13m/min Panel thickness: 10-60mm Panel length: Min. 100mm Panel width: Min. 50mm Edge thickness : 0.4-3mm Overall size:4300*900*1600mm
ZD500-Five Functions gluing end trimming fine trimming scraping buffing	Working pressure: 0.7MPa Total power: 6.73kw Feeding speed: 13m/min Panel thickness: 10-60mm Panel length: Min. 100mm Panel width: Min. 50mm Edge thickness : 0.4-3mm Overall size:3600*900*1500mm
ZD400-Four Functions gluing end trimming fine trimming or scraping buffing	Working pressure: 0.7MPa Total power: 6.23kw Feeding speed: 13m/min Panel thickness: 10-60mm Panel length: Min. 100mm Panel width: Min. 50mm Edge thickness : 0.4-3mm Overall size:3100*750*1500mm

PRODUCT APPLICATION
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES

CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
