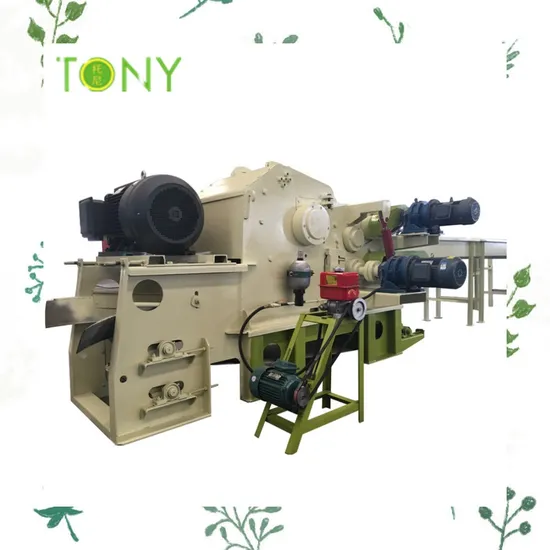

8-15 Ton Per Hour Wood Chipping Machine/ Industrial Drum Wood Chipper

Product Description

8-15 Ton Per Hour Wood Chipping Machine/ Industrial Drum Wood Chipper Product Description
Introduction:
Drum chipper is the production of wood products and special equipment, this product is widely used in particle board plants, medium and high density fiberboard plant, stubble plants, biomass power plant, wood chips and other industrial and manufacturing plant manufacturer preparation in section before the device of choice.
The product structure is advanced, cutting film material of high quality, wide adaptability of raw materials, easy operation and maintenance. The main cutting raw material is small diameter wood, timber harvesting, the trail wood, bamboo, slab materials, processing residues (such as sugar cane, reed, bamboo etc).
Raw of Material:
Various wood logs,small used wood pallet,wood slabs,wood blocks,bamboo straw,corn stalks etc.
Parts Show: Knife and Roller
Material: Alloy steel and stainless steel
Working Life: Knife--Around 2000-3000 hours; Rollers-around 3000 hours
Manufacturing Technique: Professional heat treatment ---American Abar Ipsen Vacuum Quenching Oven, can make the hardness above HRC62.
Main Features of wood chipper
1.New design blade rotor,blades are easy to replaceable.
2.Screen mesh size is customized for different requirements on size of end product.
3.Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered
4.Higher capacity than the traditional type,larger feeding size,could chipping log diameter 200-500mm
Parameters:

Model	TPQ-216	TPQ-218	TPQ-2113
Inlet (mm)	240*540	310*700	400*700
Blade	2	2	2
Rotate Speed	650	800	1300
Max Diameter (mm)	230	300	450
Chip size (mm)	25-35	25-35	25-35
Capacity (Ton)	7-8	8-15	15-30
Main Motor Power (kw)	55	110	200-250
Feed Roller Motor (kw)	3*1,4*1	4*1,5.5*1	7.5*2
Oil pump Motor (kw)	1.5*1	1.5*1	3*1
Weight (kg)	4070	7000	11840
Size (mm)	1800*1900*1210	2200*2150*1500	3670*2517*2050
Conveyor motor power (kw)	3	3	3

Product Details
Raw Materials to Finished Products:
Customer Case
The Certifications of Drum Wood Chipper
Our promise to you...
I promise to provide a high quality product at a fair price that will last for years and years, shipped as quickly as possible along with professional engineers support you require to get you up and running.
You can call me anytime on trademanager. I'm always working and I never sleep! (Ok, maybe sometimes.)
All the parts of products are rechecked before transportation, therefore the clients will receive the best quality products..
Free consulting service, please contact us when you have any questions about biomass pellet machinery.

---
