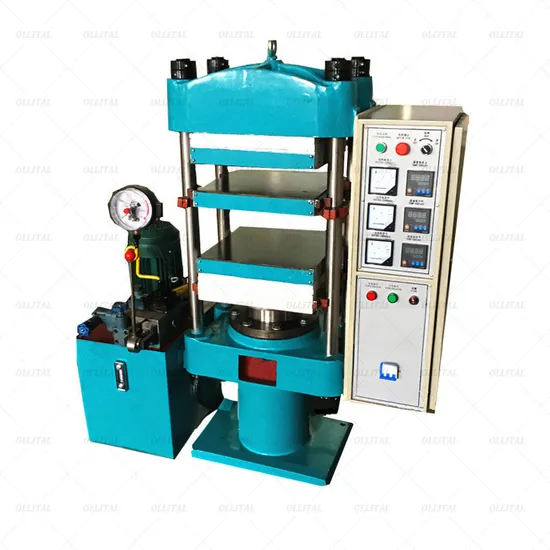

Ollital Vulcanizing Hot Patch Machine

Product Description

↓ ↓ ↓ A variety of styles for you to choose from. There is always one suitable for you! ↓ ↓ ↓ Vulcanizing machine Two Roll Mill Injection molding machine Product Description
- Rubber mixer (rubber open mill): Used to mix, grind and masticate raw rubber and additives to achieve uniform dispersion and improve vulcanization performance.- Rubber extruder: used to extrude the mixed rubber material into continuous strips, belts or pipes of various cross-sectional shapes, often used to make rubber seals, pipe fittings, etc.- Rubber Calender: The mixed rubber material is extruded and calendered through a calendering roller group to make a rubber sheet or film of a certain thickness, which is often used in the production of rubber floors, gaskets and other products.- Rubber injection molding machine: Inject heated and softened rubber material into the mold and use high-pressure injection molding to produce various complex-shaped rubber products, such as seals, parts, etc.- Rubber vulcanizing machine (rubber vulcanizing pot): Put the formed rubber products into the vulcanizing tank, and perform vulcanization treatment under certain temperature, pressure and time conditions, so that the rubber products obtain ideal physical and mechanical properties.
Product Parameters

Mode	OLT-JZ-25T	OLT-JZ-50T	OLT-JZ-80T	OLT-JZ-100T
Hot plate specifications	350*350mm	400*400mm	400*400mm	450*450mm
Number of hot plate layers	1 layer(can increase by 1)
Hot plate distance	Single layer 75-280mm(optional)Double layer 110mm
brand	OLLITAL	OLLITAL	OLLITAL	OLLITAL
Maximum hydraulic pressure	16Mpa	16Mpa	16Mpa	16Mpa
Cylinder diameter	152mm	152mm	152mm	152mm
Heating method	Electric heating	Electric heating	Electric heating200°	Electric heating
Maximum temperature	200°	200°	200°	200°
Motor	Three phase motor	Three phase motor	Three phase motor	Three phase motor
Structure type	Four pillars	Four pillars	Four pillars	Four pillars
Power(hot plate per layer)	2400W	2700W	2700W	3000W
Weight	~700Kg
Voltage	380V
Special requirements	Customized upon request
Standard accessories	1 host	1 host	1 host	1 host
Optiona	1-layer heating plate,rubber sample preparation mold,plastic sample preparation mold,automatic pressure reduction.water cooling for plastic products
More models

* All models can be customized according to drawings and needs. Contact an engineer today to learn about the most suitable and cost-effective solution!
Products real shot1.
Control panel, simple and intuitive
As the interface for equipment operation, the control panel has the characteristics of intuitive and easy to use, complete functions, reliable and durable, information feedback, safety protection, flexible and adjustable, easy maintenance and repair, and intelligent interconnection. Its design is simple and intuitive, and the operation buttons are reasonably laid out, which can meet the various operating needs of users and improve the efficiency and convenience of equipment operation.2.
Electric heating system
It has the characteristics of precise control, uniform heating, quick response, safety and reliability, energy saving and environmental protection, convenient maintenance and automatic control. It can effectively realize the vulcanization processing of rubber products and improve production efficiency and product quality.3.
Single pump drive
The single-pump drive system has the characteristics of simple structure, space saving, convenient operation, high stability, low maintenance cost, energy saving, environmental protection and wide applicability. Its simplified design reduces maintenance and repair costs, improves equipment reliability and stability, is suitable for a variety of rubber vulcanizers, and is widely used in industrial production.4.
Various styles to choose from
A variety of styles to choose from, including diverse capacities, flexible heating methods, diverse structural designs, high degree of automation, excellent safety performance, energy saving and environmental protection, convenient operation and wide range of applications. The selection of these styles is flexible and can meet the production needs of different scales and process requirements, providing important processing equipment for the production of rubber products.
Company Profile
FAQQ1. What is your products range?
• OLLITAL is a high-tech enterprise focusing on R&D and specializing in the production of industrial machinery, dry ice production machinery, dry ice cleaning machinery, laboratory biological equipment, biological fermentation equipment, laboratory reaction equipment and other fields. (More products) Q2. Are you trading company or manufacturer?• We are a professional manufacturer of Laboratory, industrial equipment, and we have our own factory. Q3. Do you provide samples? Is it free?• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost. Q4. Do you have warranty?• Yes, we offer 1 year warranty for the spare part. Q5. How long is your delivery time?• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity. Q6. What is your terms of payment?• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment. Contact usXiamen OLLITAL Machinery Equipment Co., Ltd.
Made-in-china: https://ollital.en.made-in-china.com
Official website:www.ollital.c0mDry Ice cleaning website:www.ollital-cleaningmachines.c0m
Add: No. 39, Xinchang Road, Haicang District, Xiamen City, Fujian Province, China This is the product you need!
"Contact an engineer" immediately to provide you with the most suitable solution!

---
