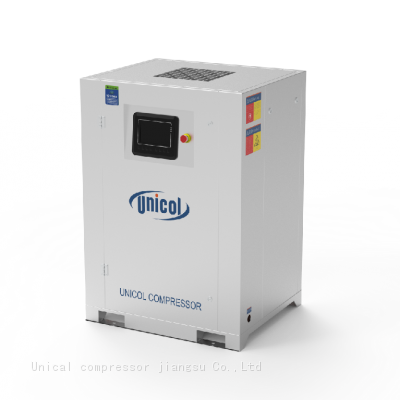

| model | UNWX-10 | |
| manufacturer | unicol | |
| volume flow | m3/min | 0.8 |
| exhaust pressure | Mpa | 0.8 |
| Motor nominal power | KW | 8 |
| driving mode | Straight in one | |
| source | V/Hz/Ph | 380/50/3 |
| Maximum ambient temperature | oC | ≤40 |
| cooling-down method | forced air cooling；air patenting | |
| delivery temperature | oC | Ambient temperature of + 20 |
| Motor protection grade | IP54 | |
| Electrical insulation grade | F | |
| The exhaust outlet | Top / side out of the wind | |
| Exhaust interface | DN | Rp3/4 |
| outline dimension | mm | 883*740*1200 |
| Unit weight | Kg | 243 |
| run mode | automatism |
