Product Details
Product Description
Product Description

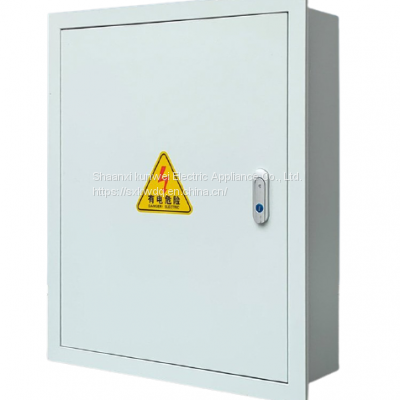

XM type distribution box is suitable for three-phase four-wire power system with three-phase AC 50Hz, rated voltage 220V/380V, rated current below 250A, and is used for receiving and distributing electric energy. It is widely used in power distribution, lighting, metering and other purposes in factories and mines and civil buildings. The product has the characteristics of good safety, flexible electrical scheme, convenient combination, strong seriality and practicability, novel structure and high protection level. In line with national energy-saving and environmental protection requirements; electrostatic spraying, strong anti-corrosion ability; streamline design, high protection level, suitable for various occasions.
The shell material of XM series lighting distribution box is made of cold-rolled steel plate. The shell is treated with high-voltage electrostatic spraying or electroplating. It can be equipped with a plastic transparent cover.
Structural features:
1. The modular structure of the factory standard combination system, the user can choose arbitrarily
2. The design of various cabinets is novel and beautiful, and it integrates standardization and serialization.
3. The lighting box can be used for single-phase and three-phase, single-pole and multi-pole, and leakage can be combined arbitrarily:
4. The rated current is less than or equal to 100A, and the enclosure protection level reaches IP3X;
5. The ultra-thin structure is suitable for concealed installation and wall hanging installation of lightweight structural walls
6. Safe and reliable single-phase three-phase comb-shaped busbar connection, more busbar insulation protection cover makes it safer and better thermal stability.
Use environmental conditions:
1. The altitude does not exceed 2000m
2. The ambient air temperature should not exceed +40℃ and not lower than -25℃
3. The monthly average relative humidity of the air at +20℃ is not more than 90%
4. Places without severe vibration and shock
5. There is no explosion hazard place, and there is no gas and conductive dust in the medium that can corrode metals and destroy insulation
6. Indoors without rain invasion.
>>
