Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Name
Heavy Duty Unviersal Milling Machine
Table Travel
700X255X320mm
X Axis Rapid Feed
23.5-1180mm/Min
Y Axis Rapid Feed
23.5-1180mm/Min
Z Axis Rapid Feed
8-391mm/Min
Distance Horizontal Spindle to Table
30-350mm
Distance Vertical Spindle to Table
190-510mm
Vertical Spindle Speed
60-1750rpm
Horizontal Speed
30-1500rpm
Transport Package
Ply Wooden Case
Production Capacity
80sets/Month
Product Description

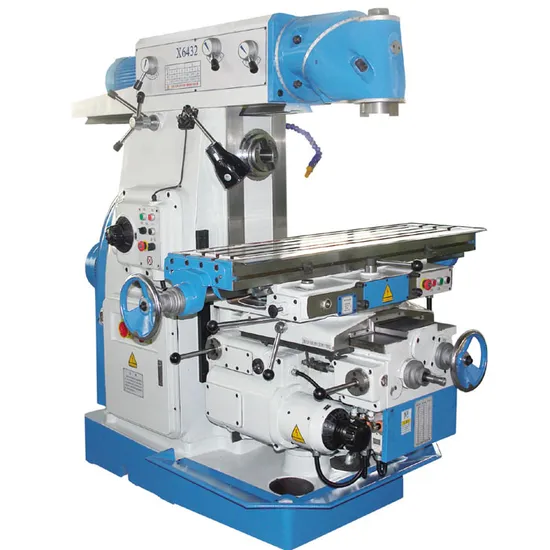

heavy universal milling machine with horizontal and vertical milling X6432
heavy universal milling machine with horizontal and vertical milling feature: Ball screws can be ordered instead of standard lead screws at special request. Vertical and Horizontal spindle hole taper both are ISO50. The milling head can swivel at 360°. Rotary table can be ordered at special request. Worktable feed on X,Y,Z by manual or automatic. Big worktable load. CE standard can be chose. Schneider electric can be ordered at special request. More stronger type. heavy universal milling machine with horizontal and vertical milling specifications:
| Specification | Unit | X6432 | X6432B |
| Table size | mm | 320x1325 | 320x1600 |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
| Max transverse travel(manual/auto) | mm | 255/240 |
| Max vertical travel(manual/auto) | mm | 320/300 |
| Max rotary angle | -- | ±45° |
| T Slots(N*W*D) | -- | 3/18/70 |
| Spindle hole taper | mm | 7:24 ISO50 |
| Distance of Horizontal spindle axis to table surface | mm | 30~350 |
| Distance of table center to vertical spindle | mm | 190~510 |
| Distance of table center to vertical ways of column | mm | 470~215 |
| Distance of table center ram | mm | 155 |
| Spindle speed step | -- | 12(V) 18(H) |
| Spindle speed range | r.p.m | 60-1750(V) 30-1500(H) |
| Table feed steps | -- | 18 |
| Table feed range Longitudinal | mm/min | 23.5~1180 |
| Table feed range cross | mm/min | 23.5~1180 |
| Table feed range vertical | mm/min | 8~394 |
| Table rapid moving speed Longitudinal/sross | mm/min | 2300 |
| Table rapid moving speed vertical | mm/min | 770 |
| Power of spindle | Kw | 4(V) 7.5(H) |
| Spindle of motor range | r.p.m | 1440 |
| Feed motor | Kw | 1.5 |
| Feed of motor range | r.p.m | 1440 |
| Net Weight | mm | 2900 | 3000 |
| Overall size (L x W x H) | kg | 2294x1770x1780 | 2294x2050x1780 |
heavy universal milling machine with horizontal and vertical milling standard accessories:
| Name | Specification Model | Qty |
| Machine | - | 1set |
| ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
| Horizontal arbor assembly | Φ22 | 1 piece |
| Horizontal arbor assembly | Φ27 | 1 piece |
| Horizontal arbor assembly | Φ32 | 1 piece |
| Oil gun | - | 1 piece |
| Drawbar | M24x720 | 1 piece |
| Double-ended wrench | 13x14 | 1 piece |
| Double-ended wrench | 27x30 | 1 piece |
| Double-ended wrench | 32x36 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 8 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
heavy universal milling machine with horizontal and vertical milling optional accessories:
| Name | Specification Model | Remark |
| XC Series Vertical milling head | XC622B | 7:24 ISO |
| XC Series Universal milling head | XC624A | MT4 |
| Universal dividing head | 125A | Include three-jaw chuck |
| Universal dividing head | 160 | Include three-jaw chuck |
| Swivel table | φ320 | Manual |
| Indexable carbide mill tool | φ63 | With shank |
| Indexable carbide mill tool | φ100 | No shank |
| Indexable carbide mill tool | φ160 | No shank |
| Sizing block | 240x120 | 6 pieces/set |
| Clamping kit | - | --- |
| Milling chucks | 15pcs/set | --- |
| Machine vice | 160 | --- |
| 3-Axis DRO | - | --- |
heavy universal milling machine with horizontal and vertical milling more photos:
f you are interested in heavy duty universal milling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person: Kitty Xu
>>
